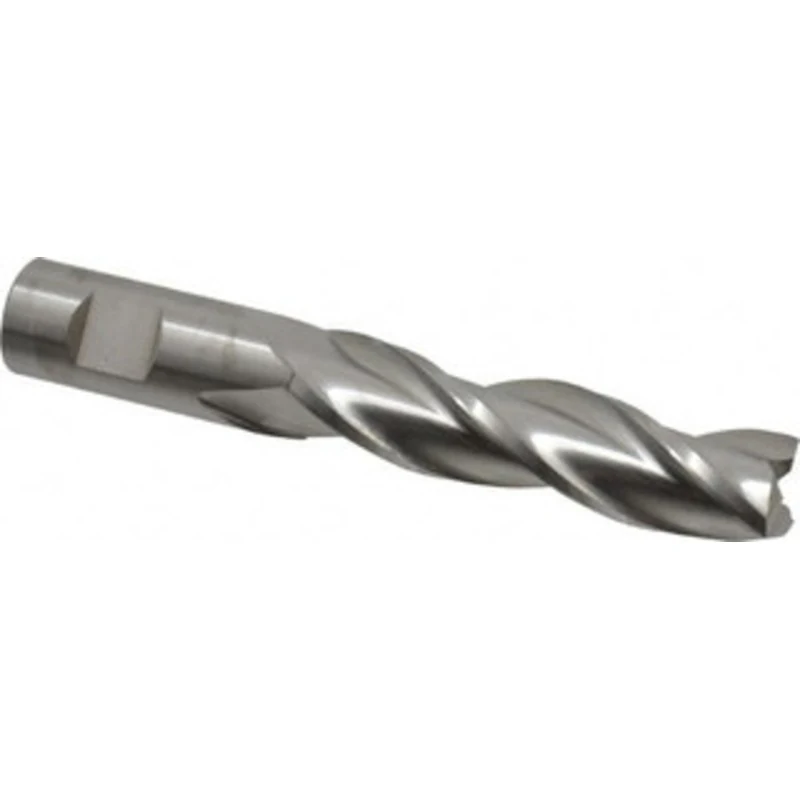

RobbJack 3/4, 3 LOC, 3/4 Shank Diam, 5 OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series TL-303 TL-303-24 – 03681152

RobbJack 3/4″, 3″ LOC, 3/4″ Shank Diam, 5″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series TL-303

Manufacturer Part #: TL-303-24

S/N: 03681152

UNSPSC: 27112803

UPC: 662966240090

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.7500
Mill Diameter (Inch)
3/4
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
3.0000
Length of Cut (Inch)
3
Shank Diameter (Inch)
3/4
Shank Diameter (Decimal Inch)
0.7500
Overall Length (Decimal Inch)
5.0000
Overall Length (Inch)
5
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Tuffy
Length Type
Extra Long
Mill Diameter Tolerance
+0.001/-0.000 in
Shank Diameter Tolerance
-0.0001/-0.0002 in
Overall Length Tolerance
+0.060/-0.060 in
Series
TL-303
