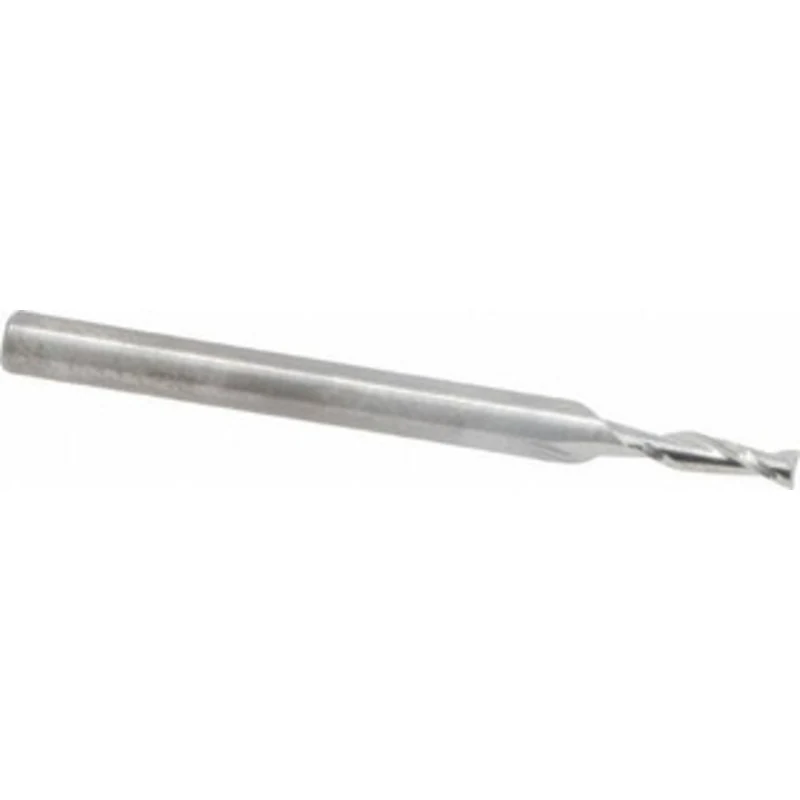

RobbJack 5/64, 1/4 LOC, 1/8 Shank Diam, 1-1/2 OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series NR-204 NR-204-02.5 – 00491209

RobbJack 5/64″, 1/4″ LOC, 1/8″ Shank Diam, 1-1/2″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series NR-204

Manufacturer Part #: NR-204-02.5

S/N: 00491209

UNSPSC: 27112803

UPC: 662966220023

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.0781
Mill Diameter (Inch)
5/64
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.2500
Length of Cut (Inch)
1/4
Shank Diameter (Inch)
1/8
Shank Diameter (Decimal Inch)
0.1250
Overall Length (Decimal Inch)
1.5000
Overall Length (Inch)
1-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
C2
Length Type
Regular
Mill Diameter Tolerance
+0.001/-0.000 in
Shank Diameter Tolerance
-0.0001/-0.0002 in
Overall Length Tolerance
+0.060/-0.060 in
Series
NR-204
