Roper Whitney Bench Punch – Medium Duty #16 – 131020160

Capacity (Tons)

7.3

Shipping weight

26.5 lbs

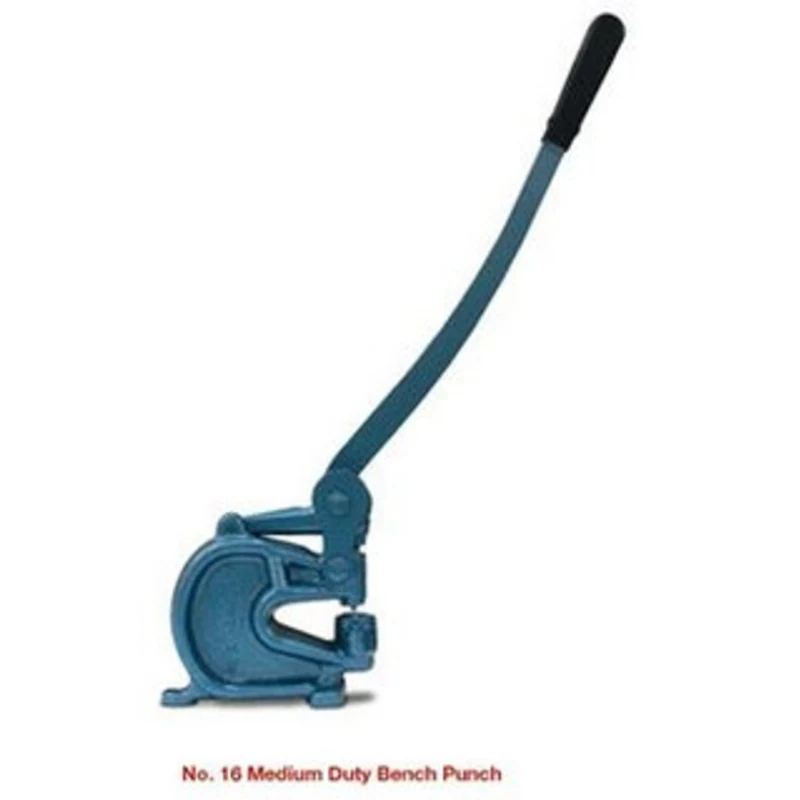

Roper Whitney Bench Punch – Medium Duty #16

Medium Duty Bench Punches are similar in operating design and capacity to the Medium Duty Roller Bearing Portable Punches. However, in addition to stationary mounting, they also provide greater throat dimensions and a slightly broader range of punch and die sizes.

Features:

• Maximum Rated Capacities:*
  No. 16 – 7.3 tons
  No. 17 – 5 tons
• Linear Roller Bearing Cam Operation
• Standard and Deep Throat Options (up to 6-1/2″)

These two punches are similar in use, yet slightly different in their construction detail. The No. 16, with its solid forged frame, has the higher rated capacity and a standard throat. The No. 17 steel frame punch provides a deeper throat dimension to punch up to 6 1/2 inches from the edge of a work piece. Both punches have adjustable die shoes to permit the proper alignment of close fitting punches and dies to punch light gauge materials. Both also have the option of a removable 6″ x 8″ work table with stops to position material in the tool.

Dimensions:

Reference
No. 16
No. 17
IN.
MM
IN.
MM

A
8-7/16
214.31
12-3/8
314.33

B
9-5/8
244.48
10-9/16
268.29

C
3-1/4
82.55
6-1/2
165.1

D
1-3/4
44.45
2-1/8
53.98

E
7/8
22.23
7/8
22.23

F
3/8
9.53
3/8
9.53

G
3-7/8
98.43
4-1/2
114.3

H
24-1/2
622.3
24-1/2
622.3

Refer to the Tonnage Chart to determine if the rated capacity of this tool will accommodate the type and thickness of metal and the size andshape hole that you will be punching. Do not, under any condition, exceed the rated capacity of this tool.

Ordering Guide
Catalog No.
Shipping Weight
No. 16
No. 17
No. 16
No. 17

Medium Duty Punch
131020160*
131020170*
26.5 lbs
38.5 lbs

Work Table
137020160
137020160
3.5 lbs
3.5 lbs

* Includes one 9/32″ round punch and die. No substitutions.
