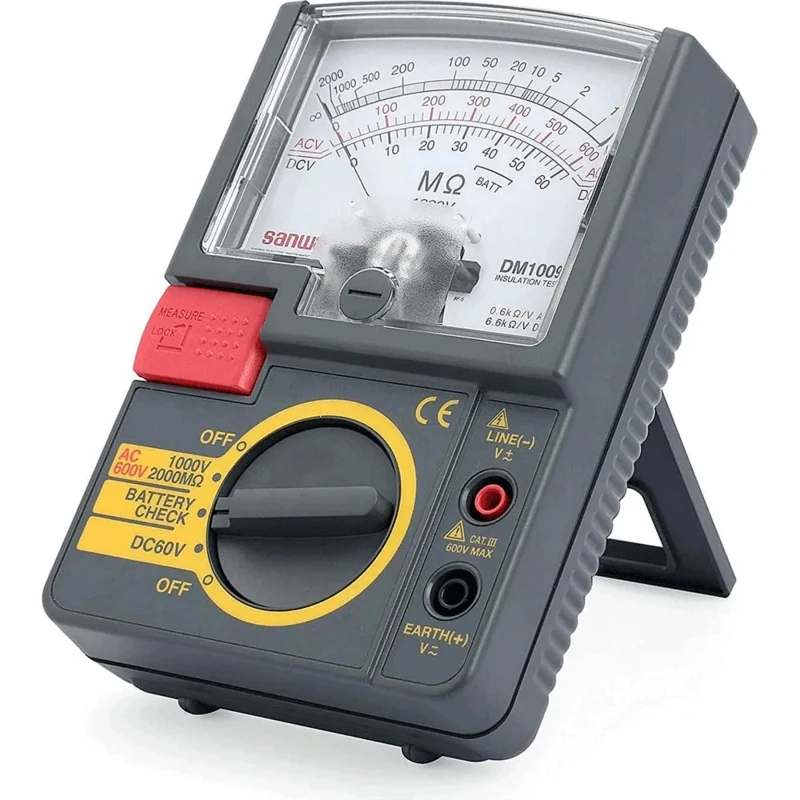

Sanwa DM1009s Analog Insulation Resistance Tester 1000V/2000M
SPECIFICATIONS:
| Scale(M) | 1210002000M |
| Tolerance | 5% of reading1st effective measurement range: written in thick print above 10% of reading2nd effective measurement range: written in small type above) |
| ACV | 600V |
| Tolerance | Within 5% of the max. scale value(5060Hz sine wave) |
| DCV | 60V |
| Tolerance | Within 5% of the max. scale value |
| Rated current | 1.01.2mA |
| Battery | 6LF22/6LR61(9V alkaline battery)x1 |
| Size/Mass | H144W99D43mm/Approx. 310g |
| Safety standard | IEC61010 CAT. 600V |
