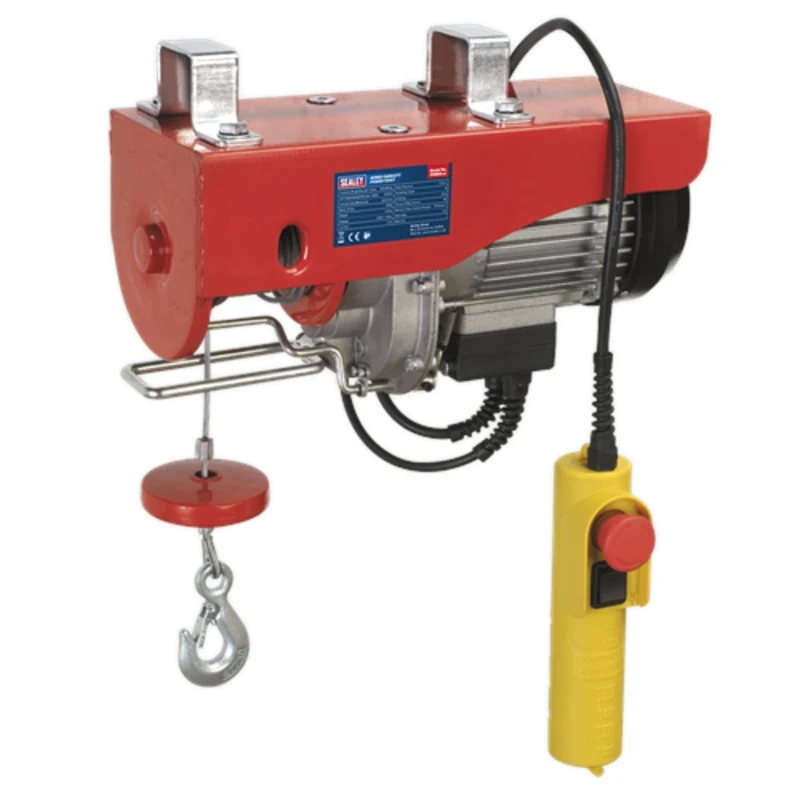

Sealey Power Hoist 230V/1ph 400kg Capacity

Approved to EU and UK Lifting Gear Regulations.
This hoist is intended for use where a suitable support facility exists.
Support brackets are included with the equipment.
The support bar is not included.

Approved to EU and UK Lifting Gear Regulations. This hoist is intended for use where a suitable support facility exists. Support brackets are included with the equipment. The support bar is not included.

Approved to EU and UK Lifting Gear Regulations.
This hoist is intended for use where a suitable support facility exists.
Support brackets are included with the equipment.
Maximum Capacity (Double Cable): 400kg.
The support bar is not included.
Model No. PH400

Technical Specification:

Capacity (Double Cable): 400kg
Capacity (Single Cable): 200kg
Current: 3.3A
Group of Mechanisms: M1
Insulating Grade: B
IP Rating: IP54
Lift Height (Double Cable): 6m
Lift Height (Single Cable): 12m
Lift Speed (Maximum): 8m/min
Minimum Rope Tensile Strength: 1770N/mm
Motor Power: 750W
Nett Weight: 16.0kg
Rope Diameter: 3.8mm
Voltage: 230V~50Hz
Work Rate: S3

Dimensions: Length: 264mm x Height: 160mm
Weight: 15.956Kg
Warranty: 1 year
