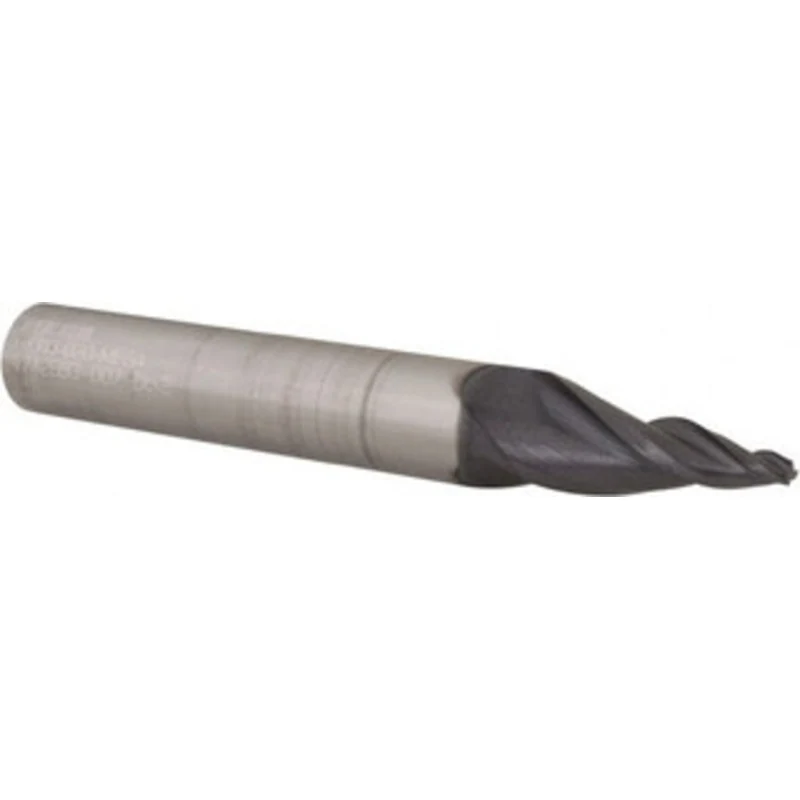

Seco Tools 11 per Side 2mm Small End Diam 20mm LOC 3-Flute Solid Carbide Tapered Square End Mill 10mm Shank Diam, 75mm OAL, 30 Helix, Spiral Flute, Centercutting 00029110 – 43361054

Seco Tools 11 per Side 2mm Small End Diam 20mm LOC 3-Flute Solid Carbide Tapered Square End Mill 10mm Shank Diam, 75mm OAL, 30 Helix, Spiral Flute, Centercutting

Manufacturer Part #: 00029110

S/N: 43361054

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (mm)
2.00
Length of Cut (mm)
20.00
Taper Angle Per Side
11.00
End Mill Material
Solid Carbide
End Shape
Square
Flute Type
Spiral
Overall Length (mm)
75.00
Centercutting
Yes
Shank Diameter (mm)
10.00
Small End Diameter (Decimal Inch)
0.0787
Small End Diameter (mm)
2.00
Helix Angle
30
Shank Diameter Tolerance
h5
Small End Diameter Tolerance
+0.1/0 mm
Primary Workpiece Material Code
K, M, N, P, S
Secondary Workpiece Material Code
N
Flute Direction
Right Hand
Series
HK
TIR Maximum (Decimal Inch)
0.000800
Length Of Cut (Decimal Inch – 4 Decimals)
0.7874
Coolant Through
No
Coating/Finish
MEGA
Number Of Flutes
3
