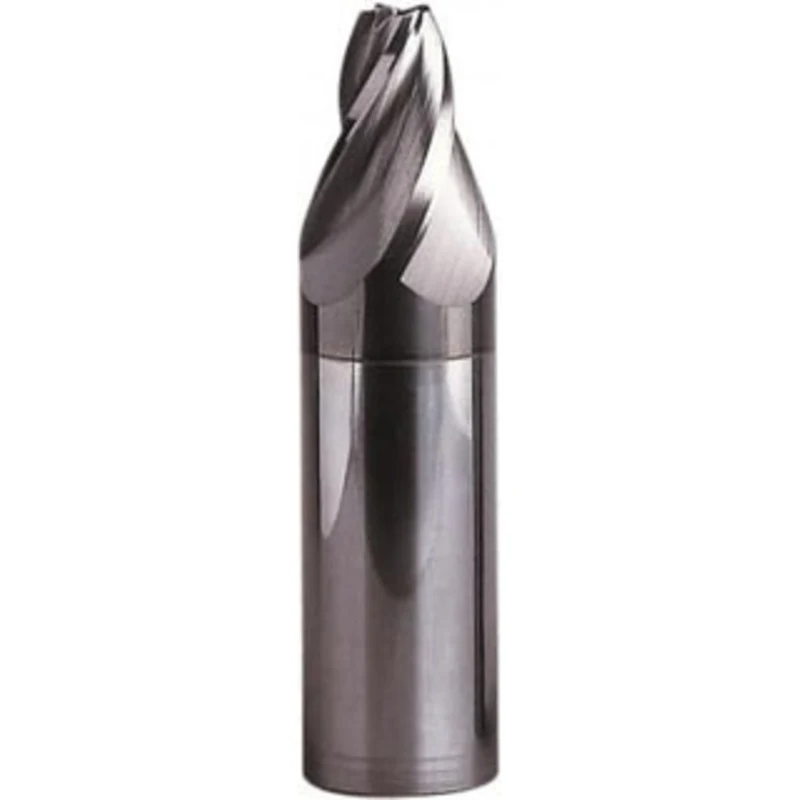

Seco Tools 15 per Side 2.5mm Small End Diam 20mm LOC 3-Flute Solid Carbide Tapered Square End Mill Uncoated, 14mm Shank Diam, 80mm OAL, 30 Helix, Spiral Flute 00029119 – 43361070

Seco Tools 15 per Side 2.5mm Small End Diam 20mm LOC 3-Flute Solid Carbide Tapered Square End Mill Uncoated, 14mm Shank Diam, 80mm OAL, 30 Helix, Spiral Flute

Manufacturer Part #: 00029119

S/N: 43361070

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (mm)
2.50
Length of Cut (mm)
20.00
Taper Angle Per Side
15.00
End Mill Material
Solid Carbide
End Shape
Square
Flute Type
Spiral
Overall Length (mm)
80.00
Centercutting
No
Shank Diameter (mm)
14.00
Small End Diameter (Decimal Inch)
0.0984
Small End Diameter (mm)
2.50
Helix Angle
30
Shank Diameter Tolerance
h5
Small End Diameter Tolerance
+0.1/0 mm
Primary Workpiece Material Code
K, M, N, P, S
Secondary Workpiece Material Code
N
Flute Direction
Right Hand
Series
HK
TIR Maximum (Decimal Inch)
0.000800
Length Of Cut (Decimal Inch – 4 Decimals)
0.7874
Coolant Through
No
Coating/Finish
Uncoated
Number Of Flutes
3
