Sine System V-Blocks – 77-362-2

Dimensions

3 x 4 x 3″

Sine System

Weight Lbs. Each V-Block

9

• Made in U.S.A.
• High precision, made of quality steel, hardened to 58-62 Rc.
• All V-Blocks guaranteed square, parallel and central within.0002″.
• One reversible, swing-away clamp furnished with each V-Block.
• Unique off-set hole pattern in top of the V-Block, combined with the versatile clamp, offers a large variety of clamping possibilities.
• Side slots allow easy mounting to work surfaces.
• Single V-Blocks or matched pairs in all available sizes.

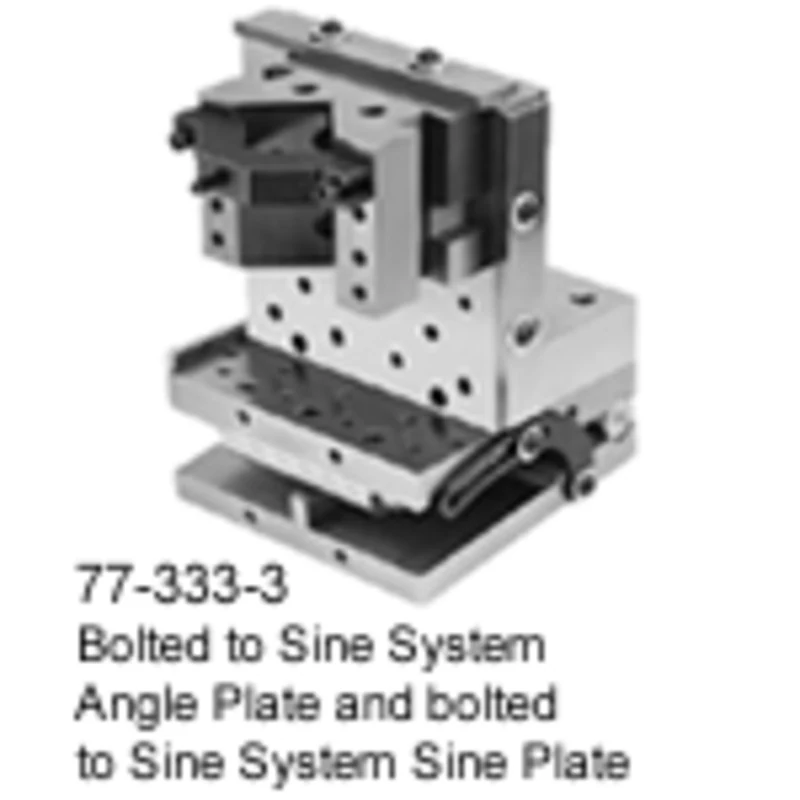

• All sine system models bolt directly to the sine system sine plates and compound sine plates of the same series.
• Sine system 1 models bolt directly to the 4 x 6 x 6 x 1-1/4″ 90 conversion angle late.
