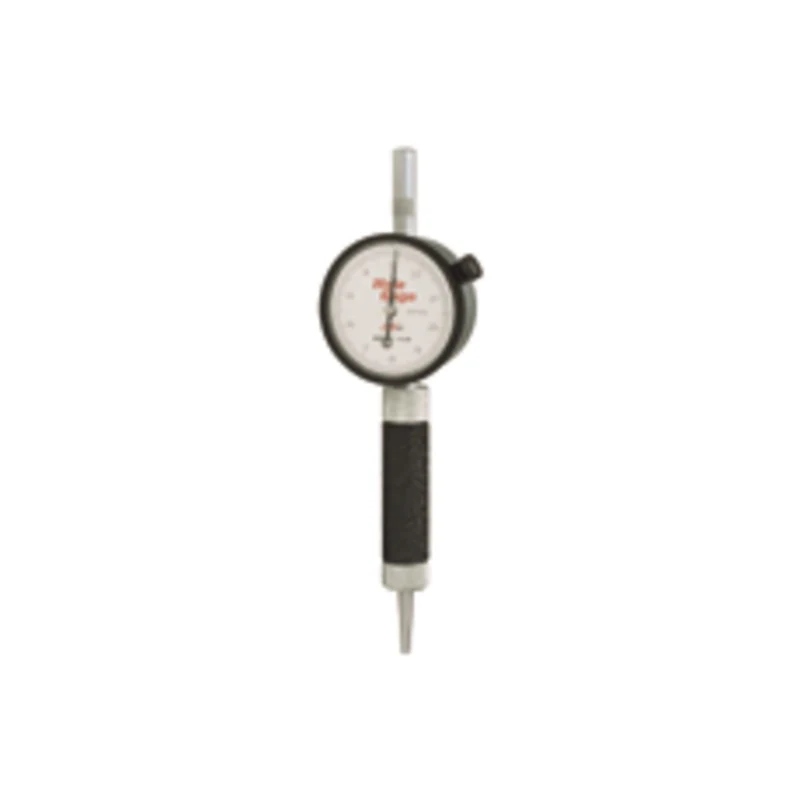

Instant diameter measurement for small holes; punched, drilled, reamed, EDM, cast, molded.
Ideal for inspection of P.C. boards, screw machine parts, injection nozzles, electronic connectors, jig boring stock, sheet metal, plastic molded parts, etc.
Quick and easy reading. Insert the hardened, precision ground tool steel gaging plunger into the hole to be measured. Press the base plate firmly against the part.
Direct diameter reading to.001″ or metric to 0,02 mm on 2-1/4″ dia. Dial Indicator.
Guaranteed accuracy.0003″ throughout the range of all models.
Four models cover range from.010″ to.530″ dia. or 0,25mm to 13.50 mm.
No setting masters required, zero on any flat surface to set-to number stamped on back of the indicator.
Furnished in fitted case.
Made in U.S.A.
Digital model has cable accessories to attach to R232 connector or Mitutoyo output available on request.
