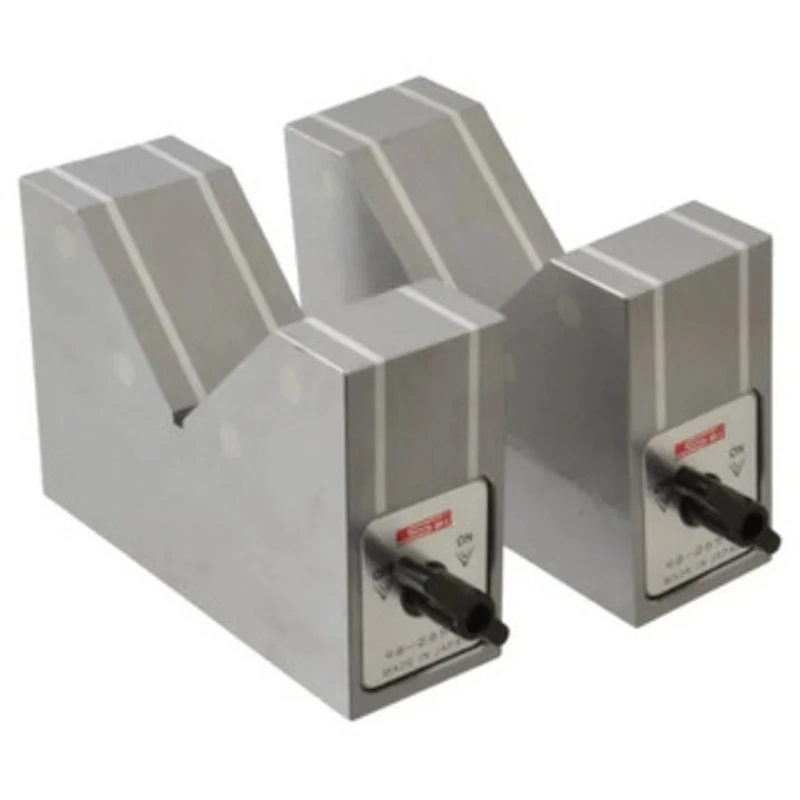

SPI Magnetic V-Blocks (Matched Pair) with On and Off Switch – 98-285-0

SPI Magnetic V-Blocks (Matched Pair) with On and Off Switch

Sold in Sets (Matched Pair)

90mm Max Capacity, 90 Angle, V-Block
150mm Long x 50mm Wide x 100mm High, Sold as Matched Pair

Applications:

• Holding tools for marking and drilling
• Holding tools for EDM and wire cutting machines
• Holding tools for three dimensional measuring instruments and various measuring systems

Features:

• Lightweight design for easy handling
• Workpiece can be held on top (V face), front and rear face
• Magnetic force can be turned On or Off
• Waterproof and oil proof construction

Specifications:

Type
V-Block

Sold As
Matched Pair

Overall Length (mm)
150.00

Overall Length (Decimal Inch)
5.9055

Overall Width (mm)
50.00

Overall Width (Decimal Inch)
1.9685

Overall Height (mm)
100.00

Overall Height (Decimal Inch)
3.9300; 3.9380

V Angle
90.00

Maximum Capacity of V (mm)
90.00

Maximum Capacity of V (Decimal Inch)
3.5433

Magnetic
Yes
