Model
SV-411
Dimensions
11 x 4 x 4-5/8″
Jaw HT
1-7/16″
Sine System

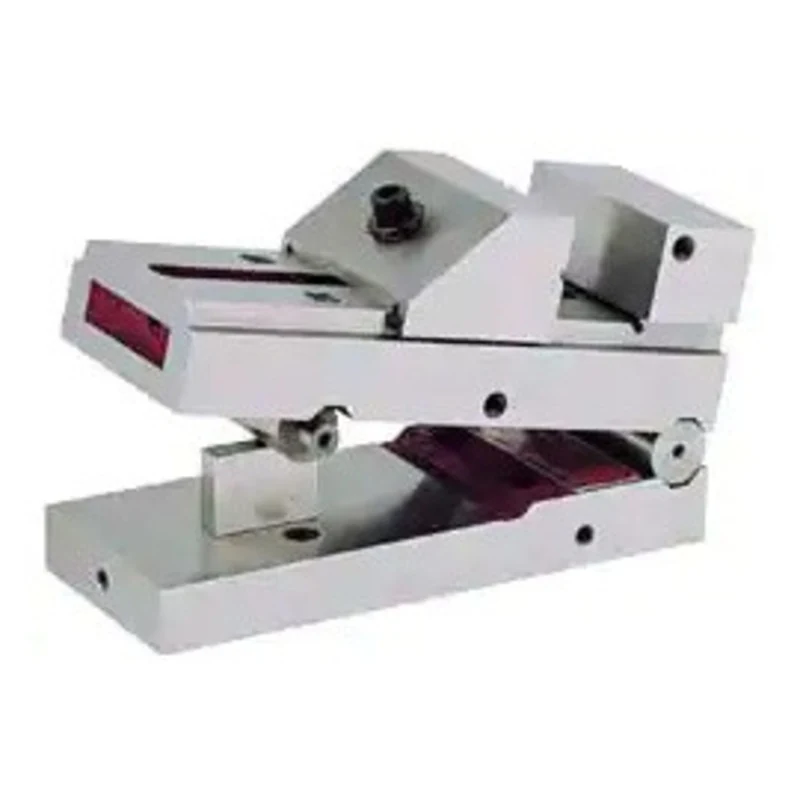

Suburban 10″ Precision Sine ViseSV-411
11 x 4 x 4-5/8
- Made in U.S.A.
- High precision, solid one-piece steel vise mounted to precision hinged bottom plate.
- Body, jaws and bottom are hardened to 58-62 Rc.
- Moveable jaw is pulled into base between 45 and 60 degrees, insuring maximum holding power and hold-down force, eliminating tilting & lifting.
- Ratchet mechanism with notched pockets and solid drawbar in the 5″ sine vises.
- Angled center channel provides extra jaw capacity.
- The 5″ sine vises have ground vertical & horizontal vees in moveable jaw.
- 0 – 60 sine capacity.
- Minute angle step.200″ built into the front gage block roll allows very small angles to be set with ease and accuracy using standard gage blocks.
- One locking strap included.
- Center distance of rolls within.0002″.
- Sine system vises bolt directly to the sine system sine plates of the same series conversion to a compound sine vise in seconds.
Specifications:
Model
SV-411
Jaw Width (Inch)
4
Jaw Opening Capacity (Inch)
7
Jaw Height (Inch)
1-7/16
Material
Steel
Parallelism (Decimal Inch)
0.0003
Squareness (Decimal Inch)
0.0003
Overall Length (Inch)
11
Overall Width (Inch)
4
Overall Height (Inch)
4-5/8
Includes
Locking Strap
