Pole Spacing
Standard
Diameter
5-1/2″
Height
3″

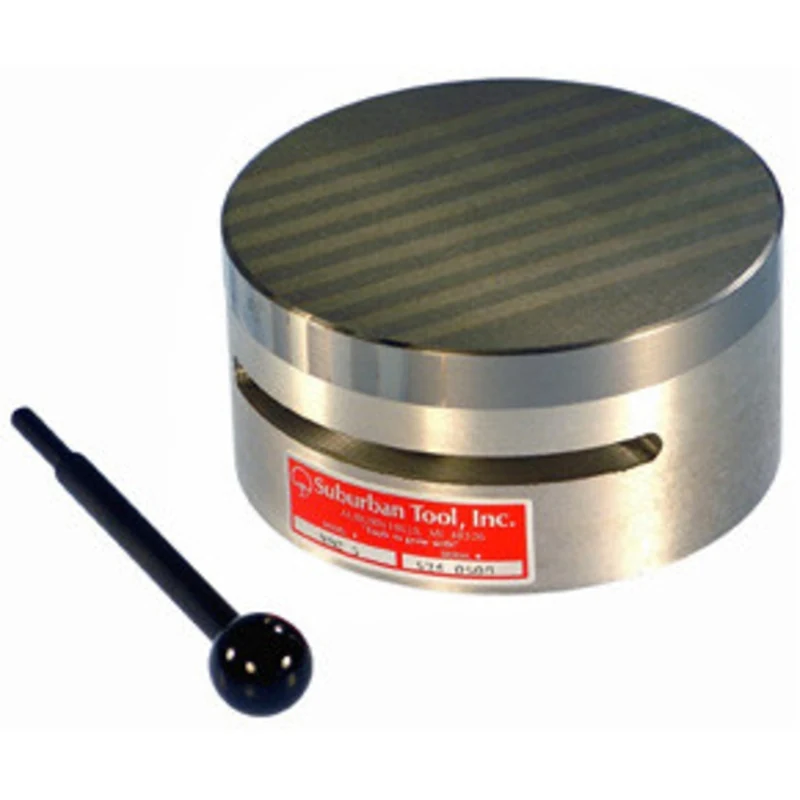

Suburban Round Permanent Magnetic Chuck RMC-5, Standard Pole, 5-1/2″ dia.
- Made in U.S.A.
- For efficient holding of magnetic work pieces on grinders, lathes, and other machines with rotating spindles.
- Permanent, ceramic magnets provide superior holding power that never fades and require no electrical controls or collector rings.
- Thick top plates are laminated from steel and stainless steel, then furnace brazed into one solid piece and precision ground.
- Top plate can be drilled, tapped or machined to three-fourths of its thickness (approx. 5/8″), if necessary, to allow the use of dowel pins or other mechanisms as locating devices.
- Back surface of aluminum chuck body has Tapped Holes (D) and a Turned Counterbore (B) for convenient mounting to your machine.
- “Partial-On” for holding parts prone to distortion.
- Removable on-off handle included with each chuck.
- All models except 5-1/2″ dia (RMC-5) which uses the swing-type on-off method, are sealed against water and other elements.
STANDARD POLE: 1/4″ poles and 1/8″ separators produce deep flux lines for holding large and thick parts. (RMC-15 and RMC-20 have 3/8″ poles and 3/8″ separators).
FINE POLE: 1/8″ poles and 1/8″ separators produce shallow flux lines for holding small and thin parts.
STANDARD POLE
MODEL #
Diameter (A)
Counterbore
Diameter (B)
Bolt Circle (C)
Tapped Holes (D)
Height (E)
WEIGHT
RMC-5
5-1/2″
3″ x 1/8″
4″
(4) 1/4-20
3″
15 lbs.
