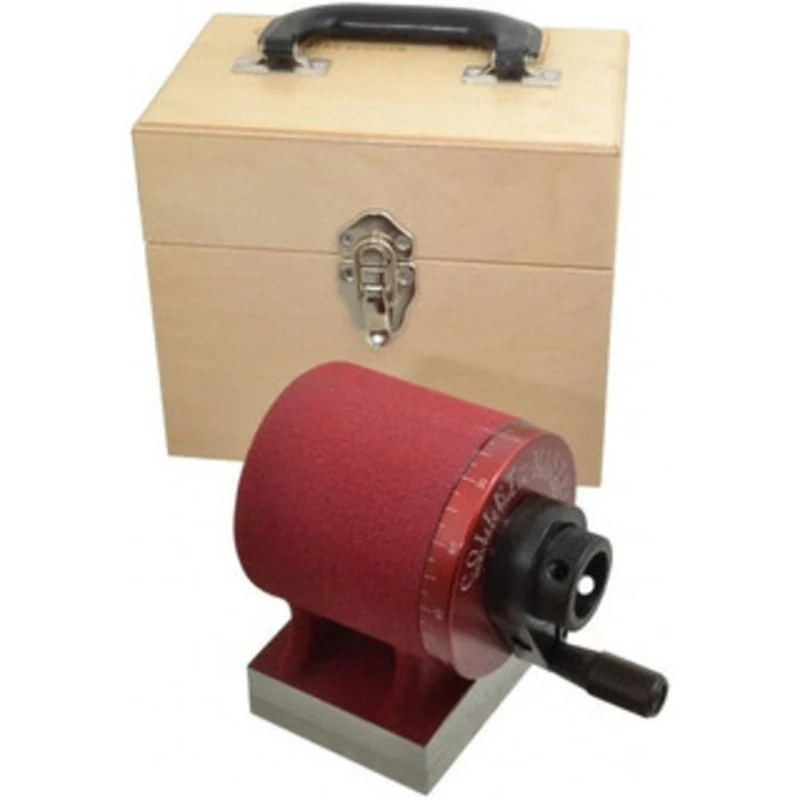

Suburban Tool Collet Indexer CM-5C
5C Spin-Indexing & Grinding Fixture
- The ideal fixture for grinding cylindrical, angular and concentric forms on punches, etc.
- Uses all standard 5C collets.
- 48 position index plate provides a hard stop every 7-1/2 45 arc seconds.
- Spindle runs on two sealed, preloaded ball bearings within.0001″ T.I.R.
- Maximum spindle runout is 0.0001″.
- 1-1/8″ through hole.
- Hardened base, 3-3/4″ x 3-1/2″, is ground square and parallel to the spindle.
- Center height 3-5/8″, overall height 5-1/2″, weight 9 lbs.
- Collet drawbar and fitted case included.
- Optional faceplate & v-block (CM-5C-FVB) available for eccentric forms.
Specifications:
MODEL #
CM-5C
COLLET CAPACITY
ALL 5C
THROUGH HOLE
1-1/4″
C
3-5/8″
L1
3-13/32″
L2
6-13/32″
W1
3-3/4″
W2
4-13/32″
H
5-9/16″
SQUARE & PARALLEL
0.0002″
WEIGHT
9 lbs.
Type
Standard Collet Indexer
Orientation Type
Horizontal
Collet Series Compatibility
5C
Number Of Indexing Increments
48
Centerline Height (Inch)
3-5/8
Spindle Runout
0.0001″
Indexing Accuracy
45s
