Pole Spacing
Fine
Length
14-1/2″
Width
6″
Height
2-5/8″

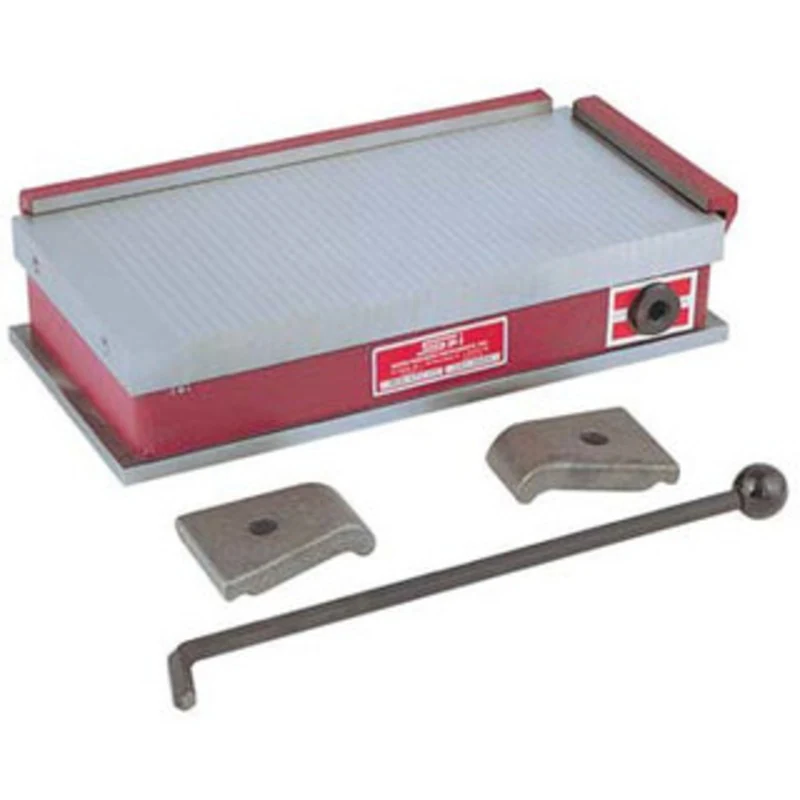

Suburban Tool Rectangular Permanent Magnetic Chuck MCB-614-FP
Fine Pole, 14-1/2″ x 6″ x 2-5/8″
Permanent Magnetic Surface Grinder Chucks
STANDARD POLE: 1/4″ poles and 1/8″ separators produce deep flux lines for holding large and thick parts.
FINE POLE (marked -FP): 1/8″ poles and 1/8″ separators produce shallow flux lines for holding small and thin parts.
Features:
- Made in U.S.A.
- Ideal for use on surface grinders.
- Permanent, ceramic magnets for superior holding power, never lose their strength.
- Sealed against dirt and liquids.
- Front-mounted handle is removable to eliminate interference.
- Handle, back rail, side rail and two clamps included.
- 8″ x 15″ models & larger have a non-removable handle.
- Top plate is laminated from steel and stainless steel, furnace brazed into one solid piece and precision ground.
- All models are lubricated, sealed against dirt and liquids.
- The smaller units can be used as Parallel Chucks on top of any regular magnetic machine chuck.
- “Partial-On” for holding parts prone to distortion.
- One end rail and one backrail plus 2 universal hold-down clamps included.
- Standard Pole Spacing for holding large and thick workpieces.
- Fine Pole Spacing for holding thin workpieces.
Specifications:
ITEM NUMBER
MODEL #
POLE SPACING
LENGTH
WIDTH
HEIGHT
WEIGHT
77-547-8
MCB-614-FP
FINE
14-1/2″
6″
2-5/8″
55 lbs.
