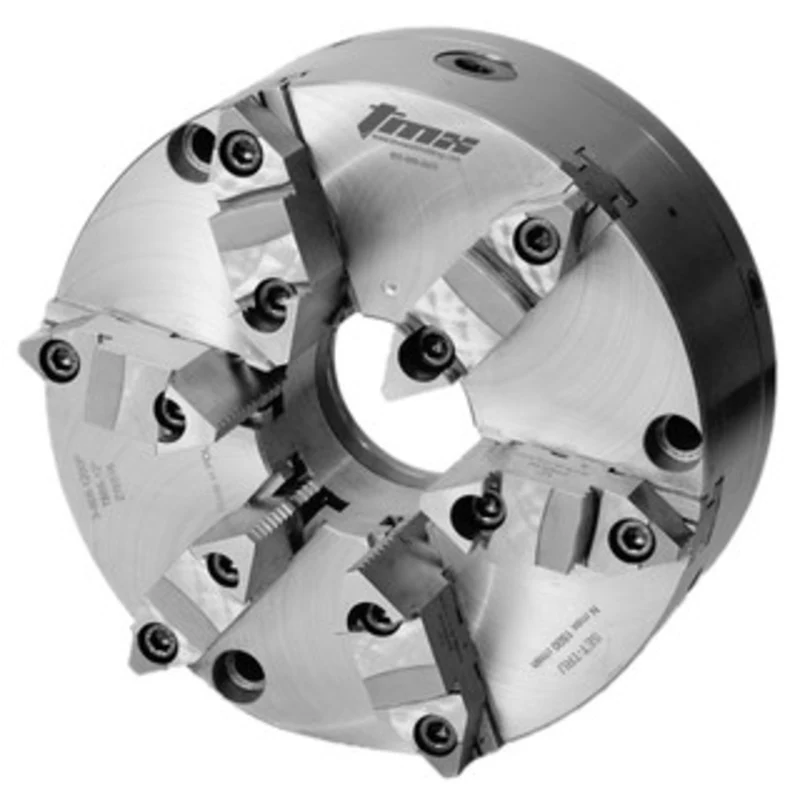

TMX 6-Jaw (2pc) SET-TRU Self-Centering Scroll Chuck with Fine Adjustment, 5in – 3-868-0500P

Chuck Size

5″

Max RPM

3800 RPM

Gripping Force

2400 daN

Weight

15 lbs.

TMX 6-Jaw (2pc) SET-TRU Self-Centering Scroll Chuck with Fine Adjustment, 5in – 3-868-0500P

6-Jaw SET-TRU Forged Steel Body Scroll Chuck
with Two-Piece Hard Reversible Jaws

Plain Back, 5in

TMX by Toolmex MADE IN EUROPE
(Compare to Bison Models 3864 & 3865 – series 7-868)

Designed for Performance

• Outstanding accuracy and quality, our solid steel body SET-TRU chucks can be used for all machining where standard scroll chucks are used, along with applications where tighter tolerances are required.
• Chuck bodies hardened to 28 HRC, jaws hardened to 50 HRC, 4 micro adjustment screws for fine adjustment, and 0.0006″ TIR repeatability make for a very rigid, reliable and accurate system.
• Due to the increased rigidity, accuracy and optimal wear behavior, our chucks can handle rough as well precision machining demands while extending the life of cutting tools and machines.

Features:

• 0.0006″ T.I.R. Repeatability
• SET-TRU features fine adjustment with 4 micro adjustment screws for outstanding repeatability
• 16″, 20″ and 25″ diameter chucks with 3 jaws and 6 jaws use 8 micro adjustment screws achieving extremely high gripping concentricity

Standard Accessories:

• 1 Set of hard master jaws
• 1 Set of hard top reversible jaws
• 1 Chuck wrench
• 1 Set of mounting bolts
• 1 Set of fine adjustment screws
• Eye bolts for chuck sizes 16″ and larger

Optional Accessories:

• TMX Fully Machined Type D1 Steel Backplates for SET-TRU Chucks
• TMX Fully Machined Type A Steel Backplates for SET-TRU Chucks

Technical Data:

Selling Unit

EA

Chuck Type

SET-TRU Scroll

Chuck Size
in
5

Body Material

Forged Steel

Number of Jaws

6

Jaw Type

2pc

Weight
lb
15

Mount Type

Front

Gripping Force
daN
2400

Max RPM
RPM
3800

Diameter D
in
4.9214.921

Recess Diameter B
in
2.165

Recess Depth C
in
0.591

Hole Diameter E
in
1.378

Bolt Circle F
in
4.252

Body Height H
in
2.835

Jaw Height H1
in
1.575

Number of bolts
and thread size S

3 x M8

d1 Solid Jaws
in
0.236 – 1.69

d1 Two-Piece Jaws
in
0.236 – 1.69

d2 Solid Jaws
in
1.65 – 3.07

d2 Two-Piece Jaws
in
1.97 – 3.43

d3 Solid Jaws
in
3.27 – 4.72

d3 Two-Piece Jaws
in
3.70 – 4.92

d4 Solid Jaws
in
1.34 – 2.68

d4 Two-Piece Jaws
in
1.30 – 2.75

d5 Solid Jaws
in
2.91 – 4.33

d5 Two-Piece Jaws
in
2.30 – 4.68

See all TMX 6-Jaw (2pc) SET-TRU Self-Centering Scroll Chucks with Fine Adjustment
