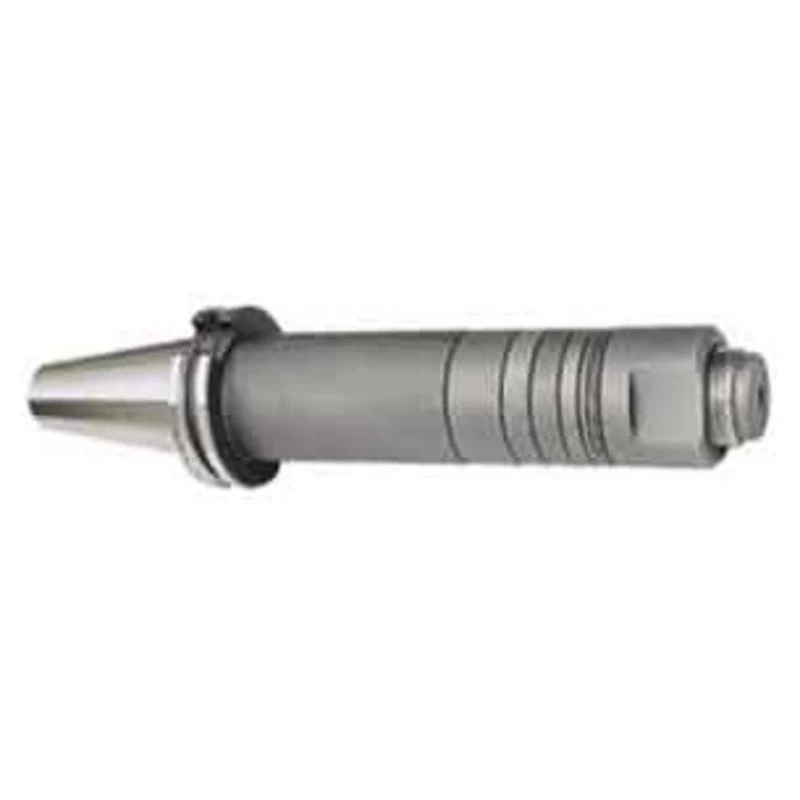

TMX CAT50 Stub Milling Arbor Holder, 1-1/4 x 7-3/4 – 8-162-5020

Taper

CAT50

Arbor Dia d

1-1/4″

Major Dia d1

1-3/4″

Gage Length A

4″

B

2″

Overall Length L

7-3/4″

TMX CAT50 Stub Milling Arbor Holder,1-1/4″ x 7-3/4″
8-162-5020

• CAT50 Stub Arbor Holder
• 1-1/4 x 7-3/4
• TMX Made in Europe
• (Previously part number was 7-191-520)

Features:

• Face is held perpendicular to centerline within 0.0002″
• Pilot diameter is sized for precision fit with cutter, and keyed for positive drive
• Heavy duty locking right-hand nut and 5 arbor spacers are included: 1/16″, 1/8″, 1/4″, 3/8″, and 3/4″
• Retention knobs sold separately
• Draw Bar Threads: CAT 40 5/8″-11 and CAT 50 1″- 8

Specifications:

Taper

CAT50

Arbor Diameter (d)
in
1.25

Major Dia (d1)
in
1.75

Gage Length (A)
in
4

(B)
in
2

Overall Length (L)
in
7.75

Weight
lb
11.9
