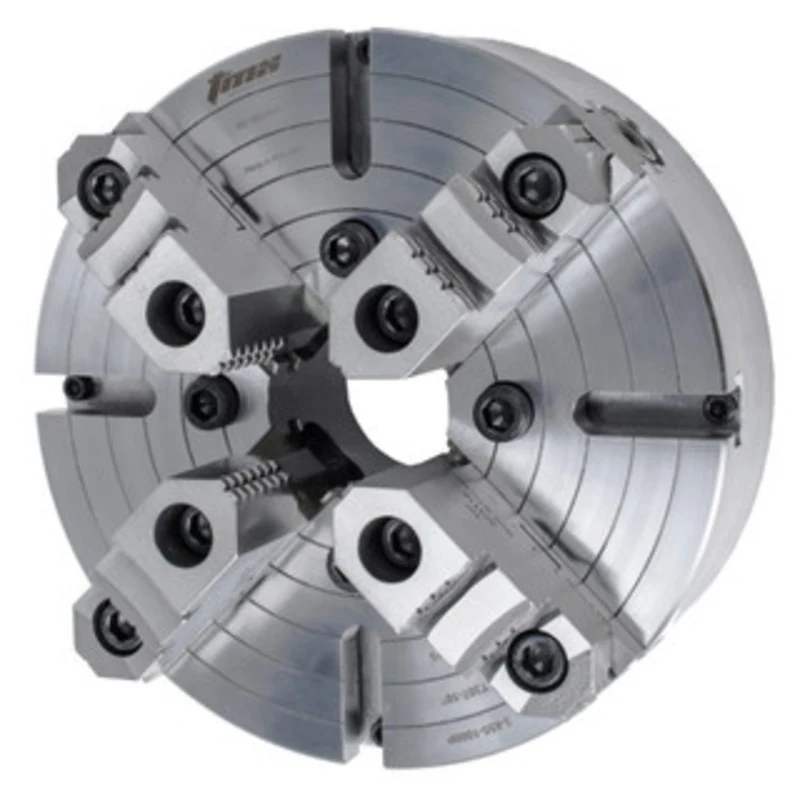

TMX Lathe Chuck, 4-Jaw, 10in – 3-855-1000P

Chuck Diameter

10″

TMX Lathe Chuck, 4-Jaw, 10in
3-855-1000P

4-Jaw (Solid) Independent Forged Steel Body Chuck
Plain Back 10in
TMX by Toolmex
MADE IN POLAND

Features:

• Four-jaw standard duty independent Lathe Chucks with solid reversible jaws, spheroidal graphite iron body.

• The jaws are made of high quality carbon steel and hardened. Thrust bearings and operating screws are case hardened steel.

• These chucks feature jaws that are individually adjustable, allow firm gripping of odd shaped work and the jaws allow a square component to be perfectly centered to the chuck while achieving maximum gripping force.

Technical Data:

Selling Unit

EA

Chuck Type

Independent

Chuck Size
in
10

Body Material

Forged Steel

Number of Jaws

4

Jaw Type

2pc

Weight
lb
57.8

Mount Type

Front

RPM max
RPM
2000

D
in
10

B
in
5.9055

C
in
0.2756

E
in
2.5591

F
in
4.126

H
in
3.0512

H1
in
2.378

S

4xM12
