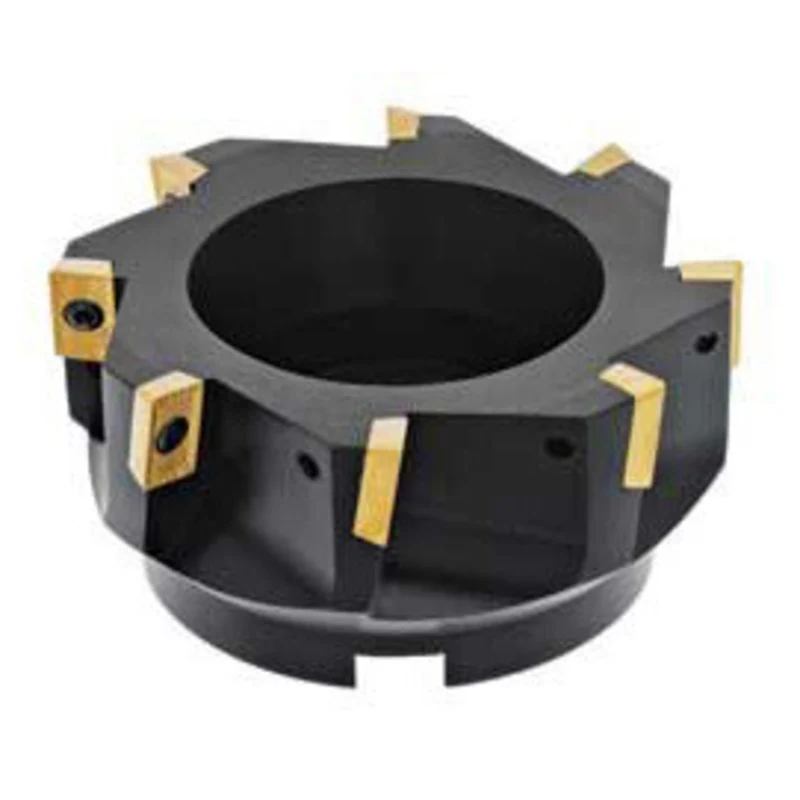

TMX Turbo Face Milling Cutter, 4 Diameter, 1-1/2 Arbor Hole – 955-045

Arbor Hole

1-1/2″

Cutter Diameter

4″

Number of Inserts

8

TMX Turbo Face Milling Cutter, 4″ Diameter, 1-1/2″ Arbor Hole – 955-045

APT-D4.00-1.50-8-16

Features:

• 90 KPA-503K inserts compliment this cutter’s unique geometry.
• Irregularly spaced flutes allow faster stock removal, reduced harmonics and chattering.
• Minimizes heat and friction.

Tool Angles:

• Cutting Rake Angle: 11, -8-6
• Radial Rake Angle: -11, -8-6
• Axial Rake Angle: 7, 9
• Setting Angle: 90

Technical Data:

Diameter OD
in
4

Flutes

8

Insert

6-AP__1604

d
in
1-1/2

H
in
2

ap (ad)
in
0.646

Insert Screw

6-998-4011

Wrench

6-998-015
