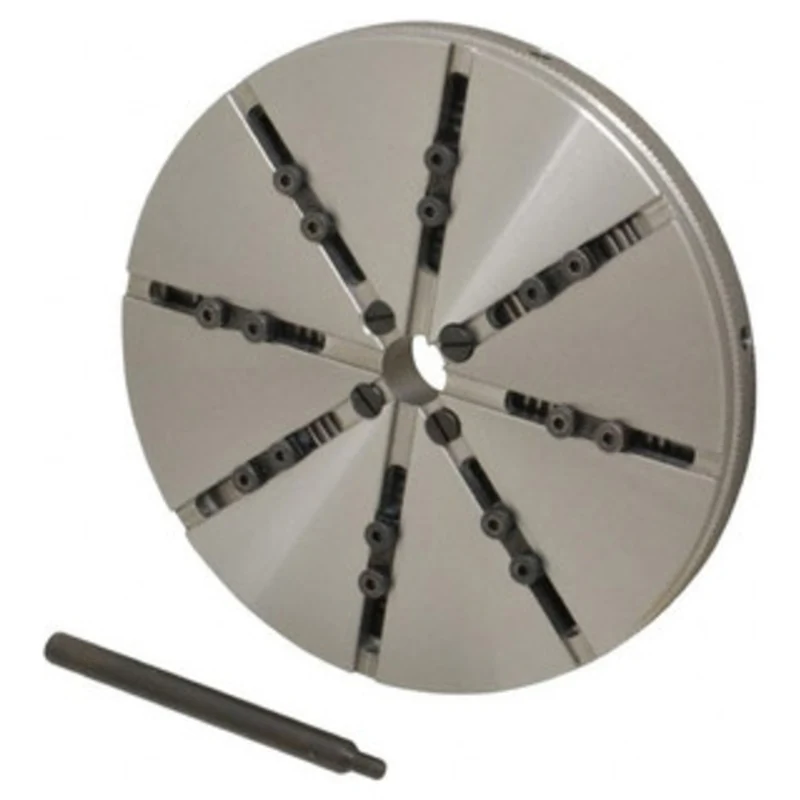

Ultra Short 8-Jaw Scroll Chuck, J-F 150, 6 Dia. – 70-270-4

Ultra Short 8-Jaw Scroll Chuck, J-F 150, 6″ Dia.

Type J-F 150

• Especially suitable for small lathes, grinders, mills, turning and indexing fixtures or where low height, overhang and weight become critical.
• High concentricity.
• Ideal for holding fragile parts.
• High spiral scroll for quick action jaw movement.
• Knurled clamping ring for convenient hand operation.
• Jaws sold separately.

Specifications:

Item Number
70-270-4

Model
J-F 150

Description
8 JAW, 6″ DIA.

Outside diameter over knurled ring
6″

Height of chuck
1″

Max. jaw height
45/64″

Center hole
5/8″

Bolt circle
1-3/32″

Clamping capacity
1 – 5-29/32″

Weight
6 lbs.
