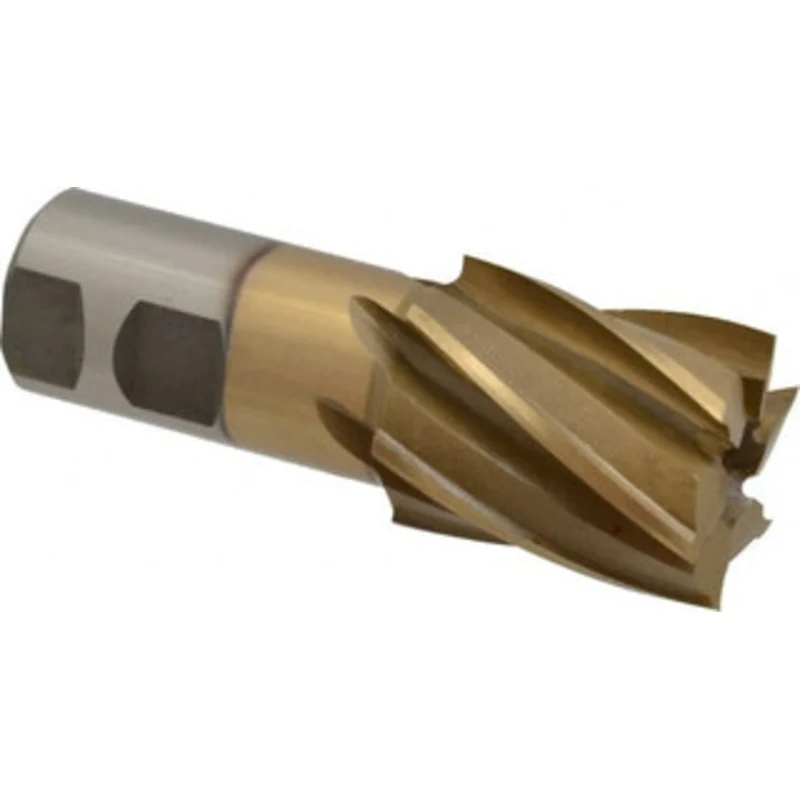

Value Collection 1-5/8, 2 LOC, 1-1/4 Shank Diam, 4-1/2 OAL, 6 Flute, High Speed Steel Square End Mill Single End, TiN Finish, Spiral Flute, 30 Helix, Right Hand Cut, Right Hand Flute 722-3145 – 63325211

Value Collection 1-5/8″, 2″ LOC, 1-1/4″ Shank Diam, 4-1/2″ OAL, 6 Flute, High Speed Steel Square End Mill Single End, TiN Finish, Spiral Flute, 30 Helix, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 722-3145

S/N: 63325211

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
1.6250
Mill Diameter (Inch)
1-5/8
Number Of Flutes
6
End Mill Material
High Speed Steel
Length of Cut (Decimal Inch)
2.0000
Length of Cut (Inch)
2
Shank Diameter (Inch)
1-1/4
Shank Diameter (Decimal Inch)
1.2500
Overall Length (Decimal Inch)
4.5000
Overall Length (Inch)
4-1/2
Single Or Double End
Single
Coating/Finish Family
TiN
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Coating/Finish
TiN
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M2
Length Type
Regular
Length Of Cut Range (Decimal Inch)
2.0000+
Series
VC-HSS-6-TN
System Of Measurement
Fractional Inch
UNSPSC Code
27112803
