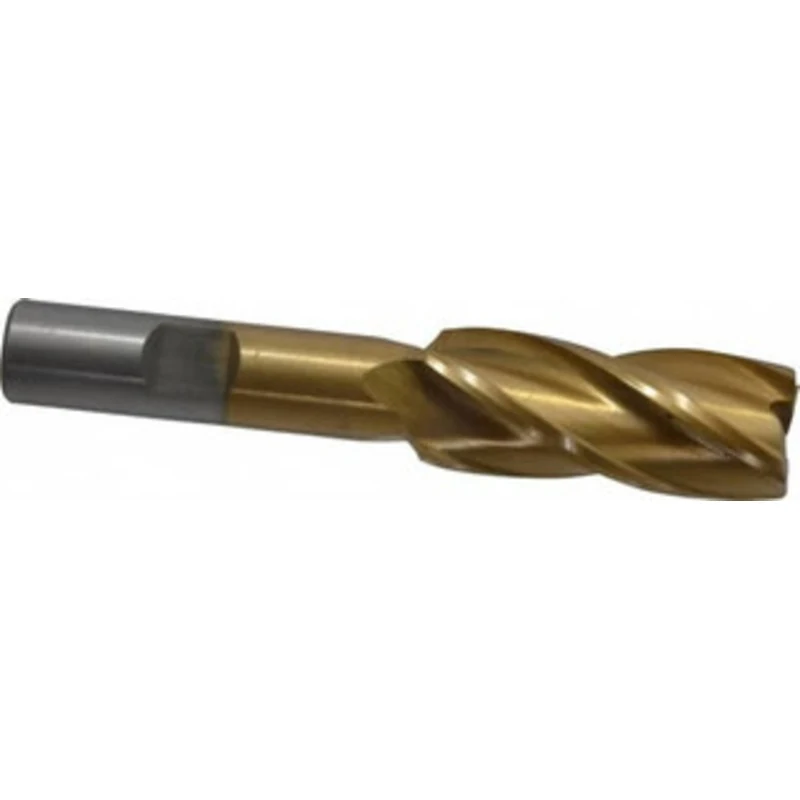

Value Collection 11/16, 1-5/8 LOC, 1/2 Shank Diam, 3-5/8 OAL, 4 Flute, High Speed Steel Square End Mill Single End, TiN Finish, Spiral Flute, 30 Helix, Right Hand Cut, Right Hand Flute 722-3059 – 01726447

Value Collection 11/16″, 1-5/8″ LOC, 1/2″ Shank Diam, 3-5/8″ OAL, 4 Flute, High Speed Steel Square End Mill Single End, TiN Finish, Spiral Flute, 30 Helix, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 722-3059

S/N: 01726447

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.6875
Mill Diameter (Inch)
11/16
Number Of Flutes
4
End Mill Material
High Speed Steel
Length of Cut (Decimal Inch)
1.6250
Length of Cut (Inch)
1-5/8
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5000
Overall Length (Decimal Inch)
3.6250
Overall Length (Inch)
3-5/8
Single Or Double End
Single
Coating/Finish Family
TiN
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Coating/Finish
TiN
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M2
Length Type
Regular
Series
VC-HSS-4-TN
System Of Measurement
Fractional Inch
UNSPSC Code
27112803
