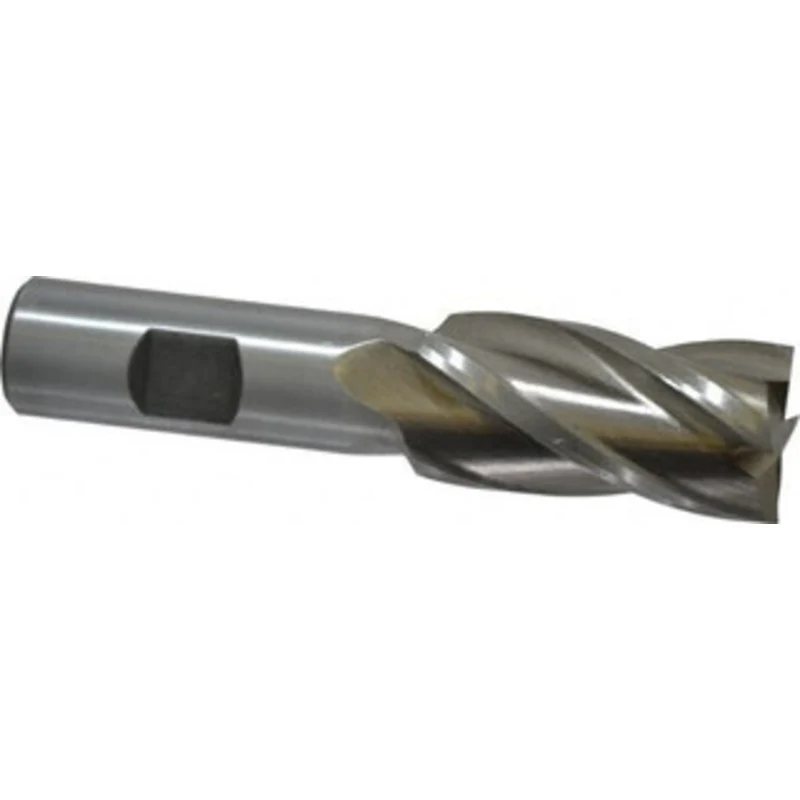

Value Collection 15/16, 1-7/8 LOC, 3/4 Shank Diam, 4-1/8 OAL, 4 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute 723-3916 – 01881606

Value Collection 15/16″, 1-7/8″ LOC, 3/4″ Shank Diam, 4-1/8″ OAL, 4 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 723-3916

S/N: 01881606

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.9375
Mill Diameter (Inch)
15/16
Number Of Flutes
4
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
1.8750
Length of Cut (Inch)
1-7/8
Shank Diameter (Inch)
3/4
Shank Diameter (Decimal Inch)
0.7500
Overall Length (Decimal Inch)
4.1250
Overall Length (Inch)
4-1/8
Single Or Double End
Single
Coating/Finish Family
Bright/Uncoated
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Regular
Series
VCCC-C-4
System Of Measurement
Fractional Inch
UNSPSC Code
27112803
