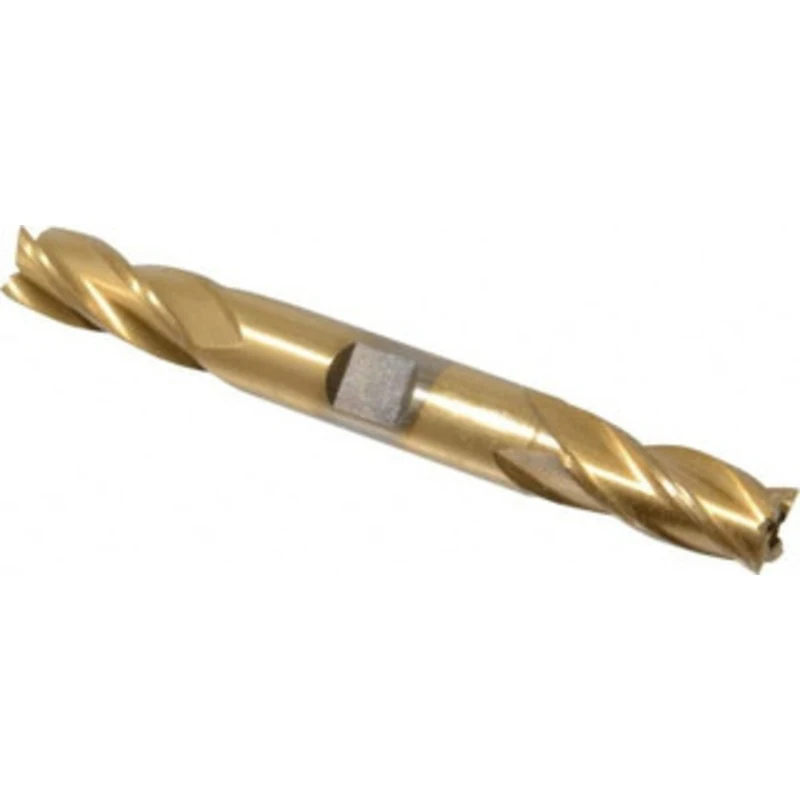

Value Collection 15/32, 1 LOC, 1/2 Shank Diam, 4-1/8 OAL, 4 Flute, High Speed Steel Square End Mill Double End, TiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute 722-4048 – 63325138

Value Collection 15/32″, 1″ LOC, 1/2″ Shank Diam, 4-1/8″ OAL, 4 Flute, High Speed Steel Square End Mill Double End, TiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 722-4048

S/N: 63325138

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.4688
Mill Diameter (Inch)
15/32
Number Of Flutes
4
End Mill Material
High Speed Steel
Length of Cut (Decimal Inch)
1.0000
Length of Cut (Inch)
1
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5000
Overall Length (Decimal Inch)
4.1250
Overall Length (Inch)
4-1/8
Single Or Double End
Double
Coating/Finish Family
TiN
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Coating/Finish
TiN
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M2
Length Of Cut Range (Decimal Inch)
1.0000 – 1.2500
Series
VCCCDE-HSS-4-TN
System Of Measurement
Fractional Inch
UNSPSC Code
27112803
