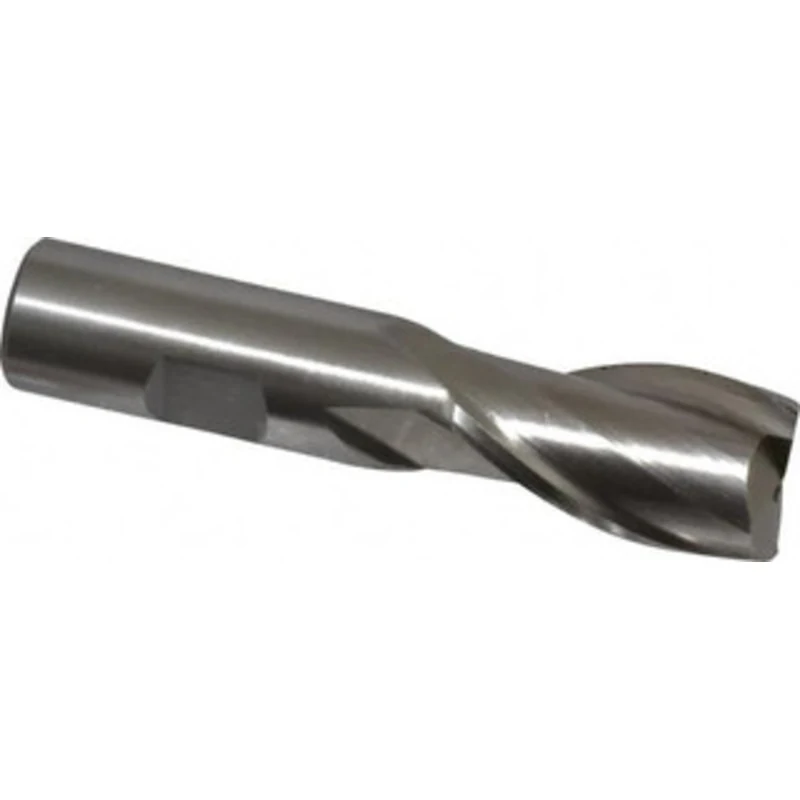

Value Collection 22mm, 1-1/2 LOC, 3/4 Shank Diam, 3-3/4 OAL, 2 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, Centercutting, Right Hand Cut, Right Hand Flute 723-9219 – 01776228

Value Collection 22mm, 1-1/2″ LOC, 3/4″ Shank Diam, 3-3/4″ OAL, 2 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 723-9219

S/N: 01776228

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (mm)
22.00
Mill Diameter (Decimal Inch)
0.8661
Number Of Flutes
2
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
1.5000
Length of Cut (Inch)
1-1/2
Shank Diameter (Inch)
3/4
Shank Diameter (Decimal Inch)
0.7500
Overall Length (Decimal Inch)
3.7500
Overall Length (Inch)
3-3/4
Single Or Double End
Single
Coating/Finish Family
Bright/Uncoated
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Primary Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
Primary Workpiece Material Code
P, M, K, S
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Regular
Series
VCCC-C-2
System Of Measurement
Metric
UNSPSC Code
27112803
