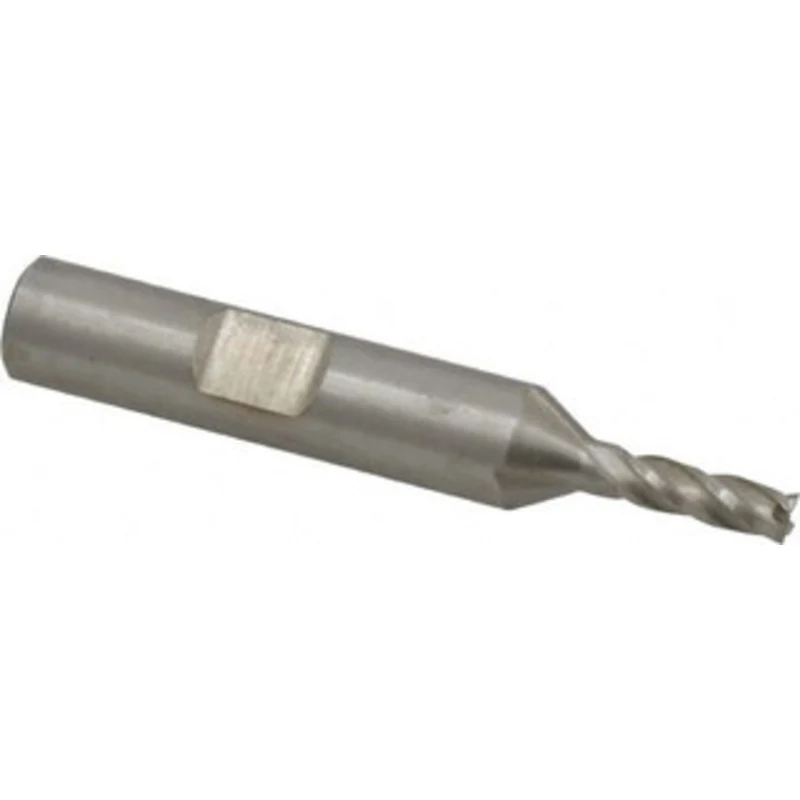

Value Collection 4mm, 1/2 LOC, 3/8 Shank Diam, 2-3/8 OAL, 4 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute 723-8616 – 01777044

Value Collection 4mm, 1/2″ LOC, 3/8″ Shank Diam, 2-3/8″ OAL, 4 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 723-8616

S/N: 01777044

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (mm)
4.00
Mill Diameter (Decimal Inch)
0.1575
Number Of Flutes
4
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
0.5000
Length of Cut (Inch)
1/2
Shank Diameter (Inch)
3/8
Shank Diameter (Decimal Inch)
0.3750
Overall Length (Decimal Inch)
2.3750
Overall Length (Inch)
2-3/8
Single Or Double End
Single
Coating/Finish Family
Bright/Uncoated
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Regular
Series
VCCC-C-4
System Of Measurement
Metric
UNSPSC Code
27112803
