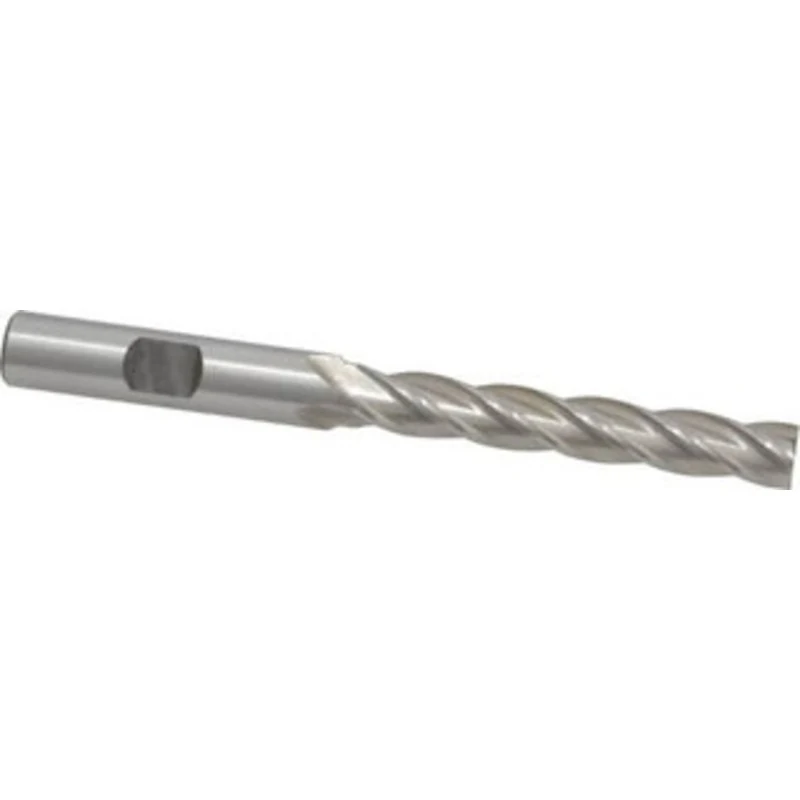

Value Collection 5/16, 2 LOC, 3/8 Shank Diam, 3-3/4 OAL, 4 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute 723-3403 – 01883206

Value Collection 5/16″, 2″ LOC, 3/8″ Shank Diam, 3-3/4″ OAL, 4 Flute, Cobalt Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 723-3403

S/N: 01883206

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3125
Mill Diameter (Inch)
5/16
Number Of Flutes
4
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
2.0000
Length of Cut (Inch)
2
Shank Diameter (Inch)
3/8
Shank Diameter (Decimal Inch)
0.3750
Overall Length (Decimal Inch)
3.7500
Overall Length (Inch)
3-3/4
Single Or Double End
Single
Coating/Finish Family
Bright/Uncoated
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Extra Long
Series
VCCC-C-4
System Of Measurement
Fractional Inch
UNSPSC Code
27112803
