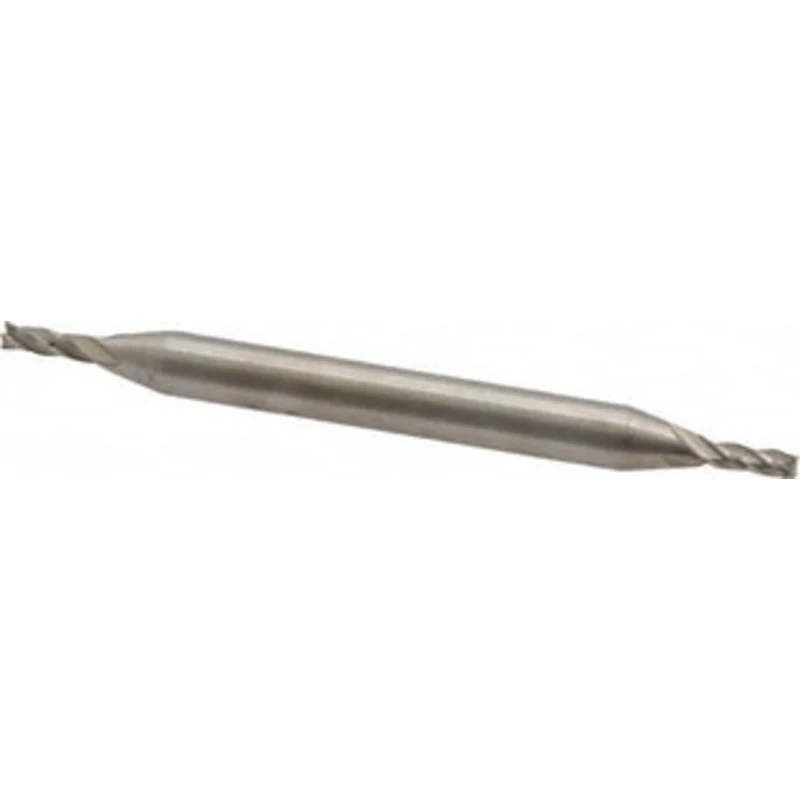

Value Collection 5/64, 15/64 LOC, 3/16 Shank Diam, 2-1/4 OAL, 4 Flute, Cobalt Square End Mill Double End, Uncoated, Spiral Flute, Centercutting, Right Hand Cut, Right Hand Flute 723-4320 – 01871052

Value Collection 5/64″, 15/64″ LOC, 3/16″ Shank Diam, 2-1/4″ OAL, 4 Flute, Cobalt Square End Mill Double End, Uncoated, Spiral Flute, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 723-4320

S/N: 01871052

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.0781
Mill Diameter (Inch)
5/64
Number Of Flutes
4
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
0.2344
Length of Cut (Inch)
15/64
Shank Diameter (Inch)
3/16
Shank Diameter (Decimal Inch)
0.1875
Overall Length (Decimal Inch)
2.2500
Overall Length (Inch)
2-1/4
Single Or Double End
Double
Coating/Finish Family
Bright/Uncoated
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Regular
Series
VCCCDE-C-4
System Of Measurement
Fractional Inch
UNSPSC Code
27112803
