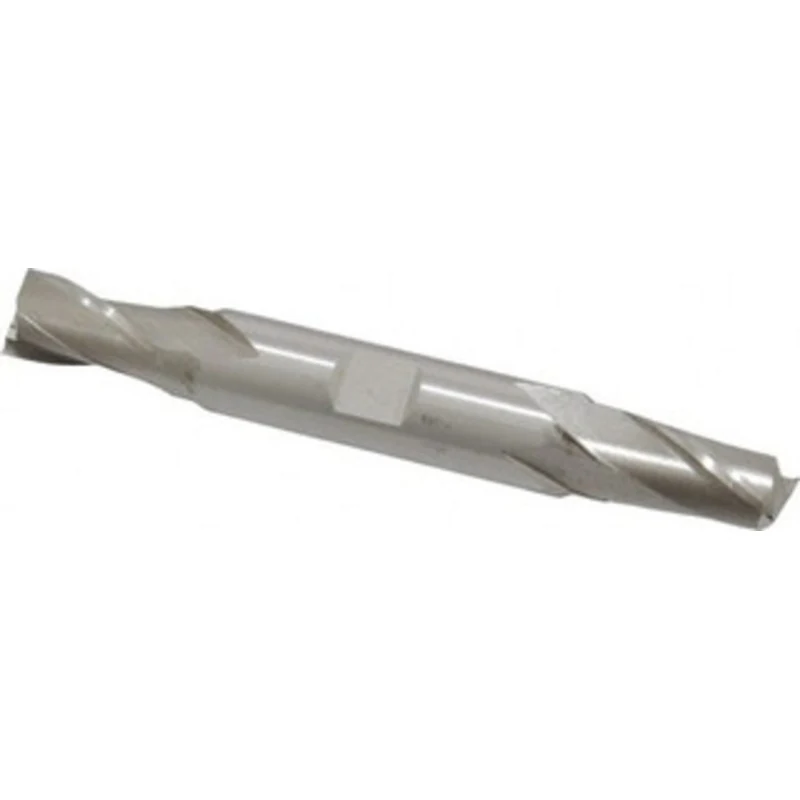

Value Collection 7/16, 13/16 LOC, 1/2 Shank Diam, 3-3/4 OAL, 2 Flute, High Speed Steel Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute 720-2048 – 01700285

Value Collection 7/16″, 13/16″ LOC, 1/2″ Shank Diam, 3-3/4″ OAL, 2 Flute, High Speed Steel Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 720-2048

S/N: 01700285

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.4375
Mill Diameter (Inch)
7/16
Number Of Flutes
2
End Mill Material
High Speed Steel
Length of Cut (Decimal Inch)
0.8125
Length of Cut (Inch)
13/16
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5000
Overall Length (Decimal Inch)
3.7500
Overall Length (Inch)
3-3/4
Single Or Double End
Double
Coating/Finish Family
Bright/Uncoated
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Primary Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
Primary Workpiece Material Code
P, M, K, S
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M2
Length Type
Regular
Series
VCCCDE-HSS-2-30H
System Of Measurement
Fractional Inch
UNSPSC Code
27112803
