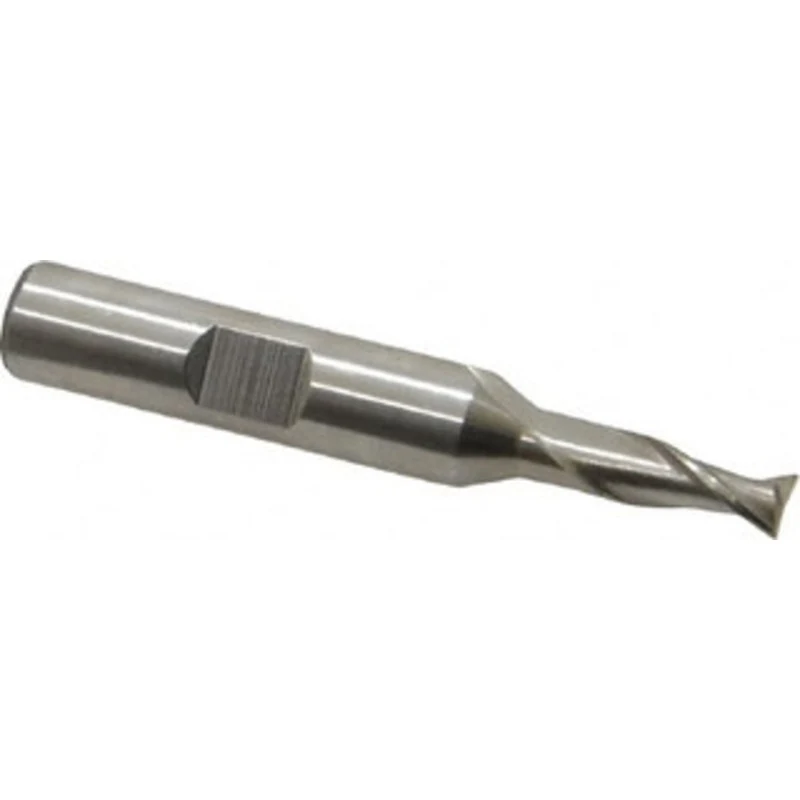

Value Collection 7/32, 1/2 LOC, 3/8 Shank Diam, 2-3/8 OAL, 2 Flute, High Speed Steel Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute 720-1013 – 01710144

Value Collection 7/32″, 1/2″ LOC, 3/8″ Shank Diam, 2-3/8″ OAL, 2 Flute, High Speed Steel Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 720-1013

S/N: 01710144

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.2188
Mill Diameter (Inch)
7/32
Number Of Flutes
2
End Mill Material
High Speed Steel
Length of Cut (Decimal Inch)
0.5000
Length of Cut (Inch)
1/2
Shank Diameter (Inch)
3/8
Shank Diameter (Decimal Inch)
0.3750
Overall Length (Decimal Inch)
2.3750
Overall Length (Inch)
2-3/8
Single Or Double End
Single
Coating/Finish Family
Bright/Uncoated
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Primary Workpiece Material
Steel, Stainless Steel, Cast Iron, Aluminum & Non-Ferrous
Primary Workpiece Material Code
P, M, K, N
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M2
Length Type
Regular
Series
VCCC-HSS-2
System Of Measurement
Fractional Inch
UNSPSC Code
27112803
