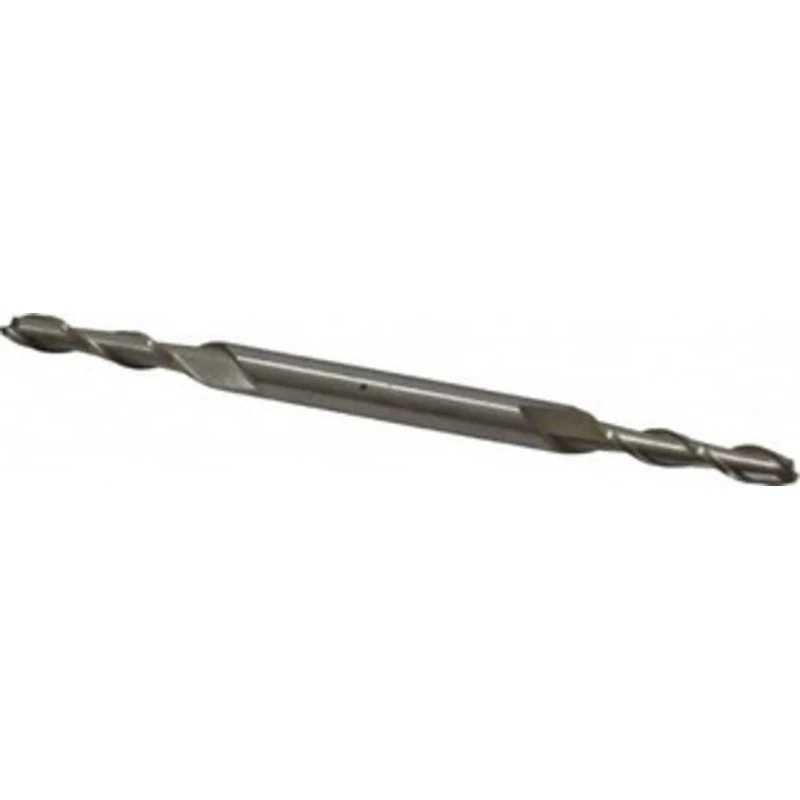

Value Collection 9/64, 3/4 LOC, 3/16 Shank Diam, 3-1/8 OAL, 2 Flute, Cobalt Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute 723-1662 – 01872092

Value Collection 9/64″, 3/4″ LOC, 3/16″ Shank Diam, 3-1/8″ OAL, 2 Flute, Cobalt Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 723-1662

S/N: 01872092

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1406
Mill Diameter (Inch)
9/64
Number Of Flutes
2
End Mill Material
Cobalt
Length of Cut (Decimal Inch)
0.7500
Length of Cut (Inch)
3/4
Shank Diameter (Inch)
3/16
Shank Diameter (Decimal Inch)
0.1875
Overall Length (Decimal Inch)
3.1250
Overall Length (Inch)
3-1/8
Single Or Double End
Double
Coating/Finish Family
Bright/Uncoated
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Primary Workpiece Material
Steel, Stainless Steel, Cast Iron, High-Temp Alloy
Primary Workpiece Material Code
P, M, K, S
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M42
Length Type
Long
Series
VCCCDE-C-2-30H
System Of Measurement
Fractional Inch
UNSPSC Code
27112803
