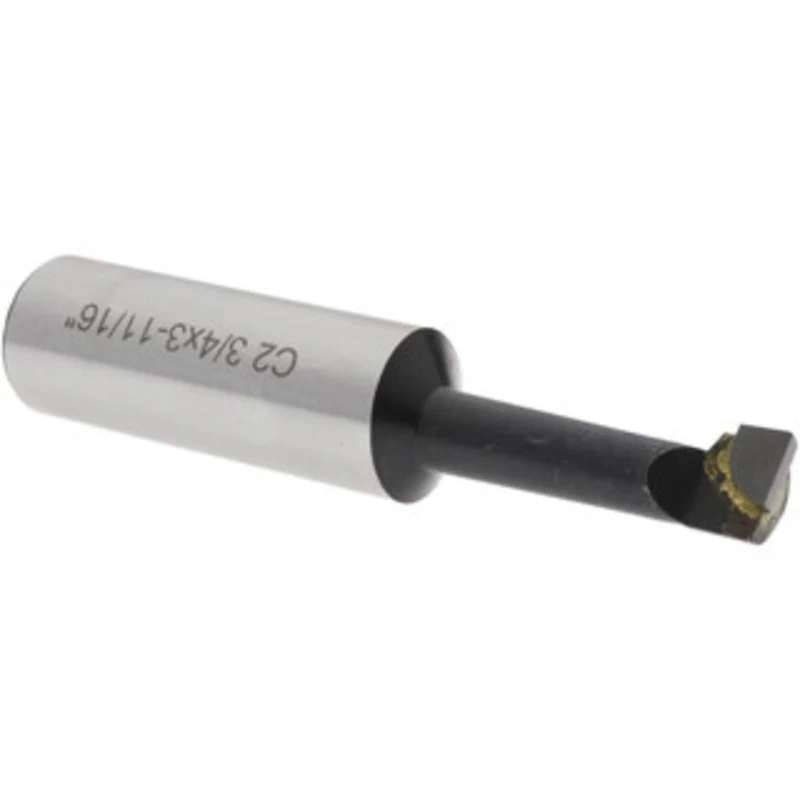

Value Collection Carbide Tipped Boring Bar, Grade C-2, 3/4 Shank, 7/16 Bore Dia, 3-11/16 OAL – 43-734-3

Grade

C-2

Shank Dia

3/4″

Min Bore Dia

7/16″

Bore Depth

1-11/16″

OAL

3-11/16″

Value Collection Carbide Tipped Boring Bar, Grade C-2, 3/4″ Shank, 7/16″ Bore Dia, 3-11/16″ OAL

Boring Bar: 7/16″ Min Bore, 1-11/16″ Max Depth, Right Hand, 3/4″ Shank Dia, C2 Carbide-Tipped, 3-11/16″ OAL

• C-2 Grade for cast and nonferrous material
• C-6 Grade for steel and steel alloys
• All boring bar sets are provided with stand

Specifications:

Boring Bar Type
Boring
Cutting Direction
Right Hand
Minimum Bore Diameter (Decimal Inch)
0.4375
Material
Carbide-Tipped
Material Grade
C2
Maximum Bore Depth (Decimal Inch)
1.6875
Shank Diameter (Inch)
3/4
Overall Length (Inch)
3-11/16
Maximum Bore Depth (Inch)
1-11/16
Minimum Bore Diameter (Inch)
7/16
UNSPSC Code
23241601
Country of Origin
China
