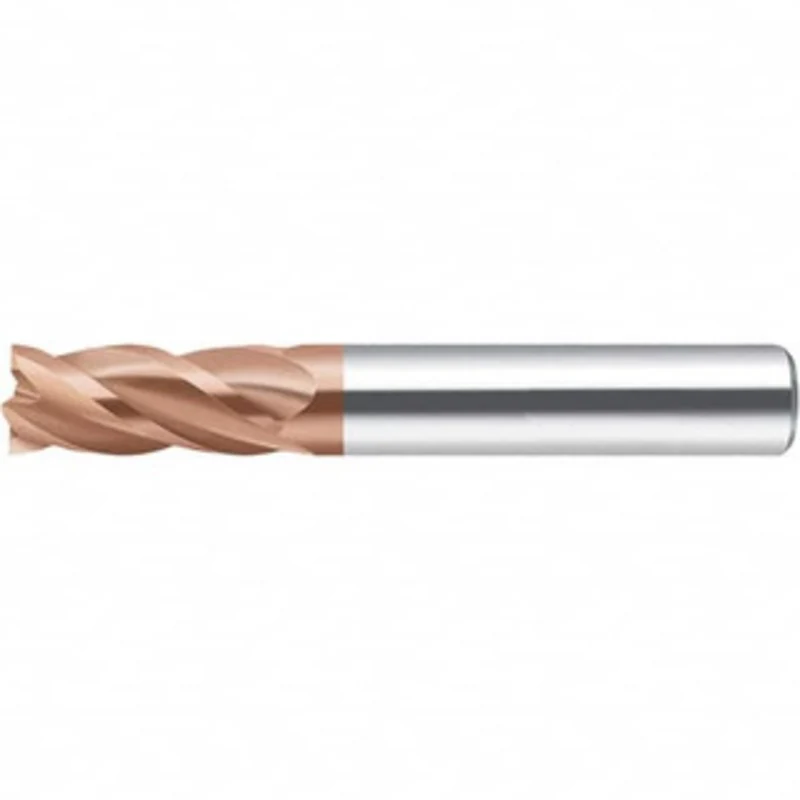

Walter Prototyp 2.5mm, 8mm LOC, 4mm Shank Diam, 57mm OAL, 4 Flute, Solid Carbide Square End Mill AlCrN Finish, 35 Helix, Right Hand Cut, Right Hand Flute, Series MC232-A-4-B 7022554 – 47316781

Walter Prototyp 2.5mm, 8mm LOC, 4mm Shank Diam, 57mm OAL, 4 Flute, Solid Carbide Square End Mill AlCrN Finish, 35 Helix, Right Hand Cut, Right Hand Flute, Series MC232-A-4-B

Manufacturer Part #: 7022554

S/N: 47316781

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (mm)
2.50
Mill Diameter (Decimal Inch)
0.0980
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.3000
Length of Cut (Inch)
19/64
Length of Cut (mm)
8.00
Shank Diameter (mm)
4.00
Shank Diameter (Decimal Inch)
0.1570
Overall Length (Decimal Inch)
2.2440
Overall Length (mm)
57.00
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Helix Angle
35
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Secondary Workpiece Material
Cast Iron, Stainless Steel
Secondary Workpiece Material Code
K, M
Variable Helix
No
Variable Index
No
Flute Type
Helical
Shank Type
Straight-Cylindrical
Reach Length (Decimal Inch)
0.3150
Reach Length (mm)
8.00
Length Of Cut Range (Decimal Inch)
0.3000 – 0.5000
Mill Diameter Tolerance
h12
Shank Diameter Tolerance
h6
Series
MC232-A-4-B
