Availability: 10 in stock

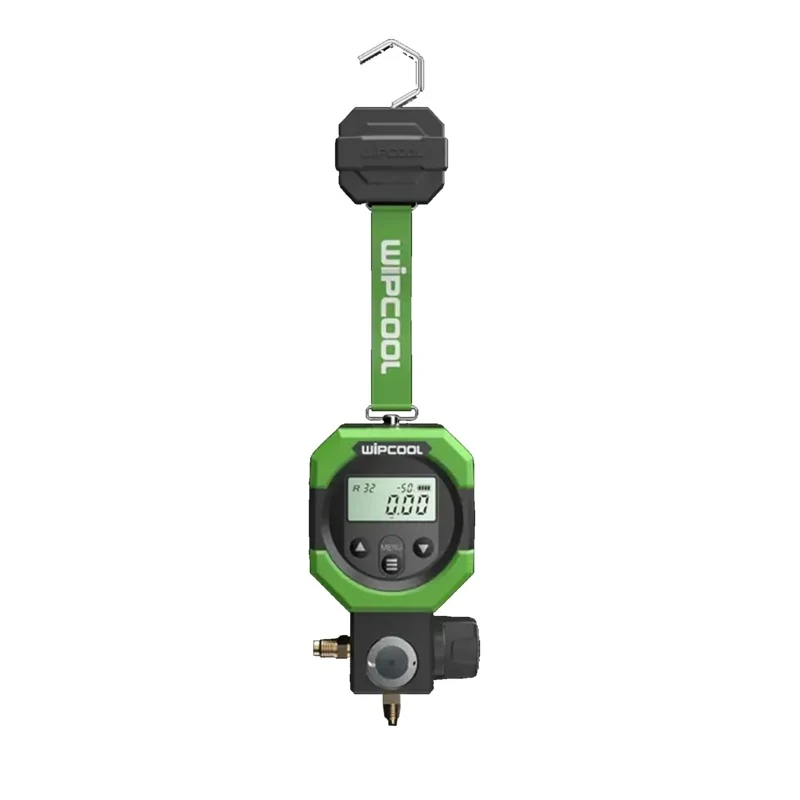

WIPCOOL Digital Manifold Gauge
MDG1
*MDG1 IS NOT A VACUUM GAUGE –MVG1 is a vacuum gauge
This WIPCOOL MDG1, Digital Manifold Gauge is a reliable and durable gauge that has a high-pressure resistance and an ergonomic design.
Specifications:
| Supportive Unit | Pressure display: bar, psi, Kpa, Mpa, kgf/cm Temperature display: C, F Vacuum display: inHg |
| Sensor | Pressure sensor (Built in) |
| Refresh rate | 1s |
| Testing medium | R22, R32, R134a, R290, R404A, R407A, R407C, R410A, R427A, R434A, R442A, R600a, R1234yf, R448A, R450A, R454B |
| Connection | 21t4″SAE |
| Pressure scale | 0-50 bar, 0-720 psi, 0-5000 KPa, 0-5 Mpa, 0-51 kgf/cm |
| Vacuum scale | -29.5-0 inHg |
| Battery Capacity | Built-in Rechargeable Li-ion Battery(1500mAh) |
| Environment humidity | 10-90%RH |
| Maximum overload pressure | 75 bar, 7500 Kpa, 7.5 Mpa, 1087 psi, 76.5 kgf/cm |
| Resolution | 0.1 psi, 0.1 bar, 1 Kpa, 0.001 Mpa, 0.1 kgf/cm Vacuum resolution: 0.1 inHg |
|
Measure precision ((At 22C/72F)) |
Pressure: 2 psi, 0.2 bar, 20 Kpa, 0.02 Mpa, 0.2 kgf/cm Vacuum: 1 inHg |
| Refrigerants | R22, R32, R134a, R290, R404a, R407a, R407c, R410a, R427a, R434a, R442a, R600a, R1234yf, R448a, R450a & R454b |
|---|---|
| Pressure scale | 0~55 bar, 0~800 psi, 0~5500 KPa, 0~5.5 Mpa, 0~60 kgf/cm2 |
| Vacuum scale | -29.5~0 inHg |
| Refrigerants | R22, R32, R134a, R290, R404a, R407a, R407c, R410a, R427a, R434a, R442a, R600a, R1234yf, R448a, R450a & R454b |
|---|---|
| Pressure scale | 0~55 bar, 0~800 psi, 0~5500 KPa, 0~5.5 Mpa, 0~60 kgf/cm2 |
| Vacuum scale | -29.5~0 inHg |
