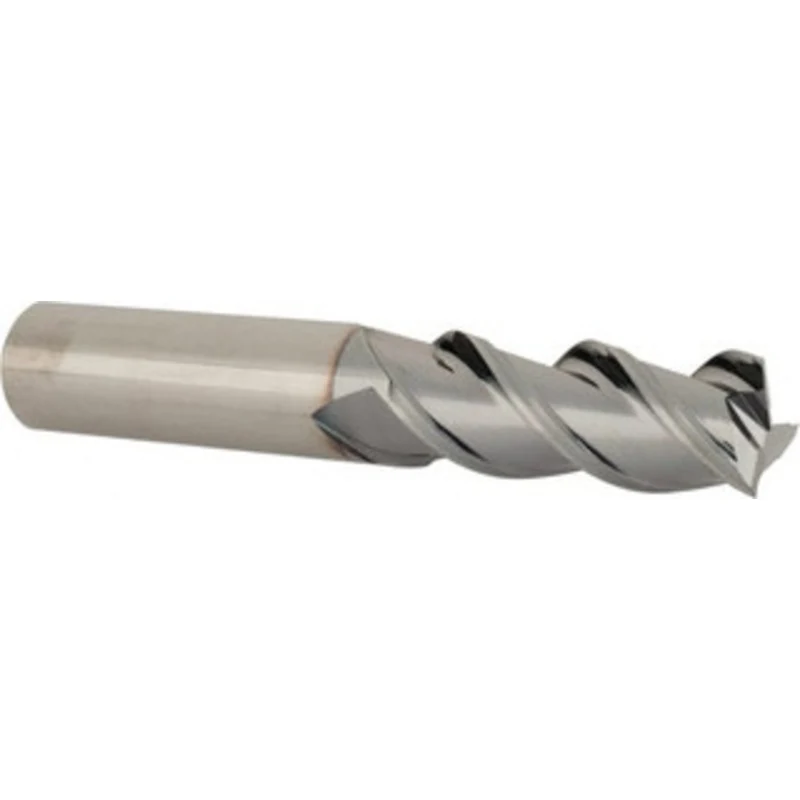

YG-1 1/2, 1-1/4 LOC, 1/2 Shank Diam, 3 OAL, 3 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 45 Helix, Right Hand Cut, Right Hand Flute 28593TC – 82887498

YG-1 1/2″, 1-1/4″ LOC, 1/2″ Shank Diam, 3″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 45 Helix, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 28593TC

S/N: 82887498

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2in
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.25
Length of Cut (Inch)
1-1/4in
Shank Diameter (Inch)
1/2in
Shank Diameter (Decimal Inch)
0.5
Overall Length (Decimal Inch)
3
Overall Length (Inch)
3in
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
45
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Coating/Finish
TiCN
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Regular
Length Of Cut Range (Decimal Inch)
1.2500 – 1.5000
Mill Diameter Tolerance
0.0000 to -0.0005 in
Shank Diameter Tolerance
+0.0000 to -0.0003 in
Series
E5981
UNSPSC Code
27112803
