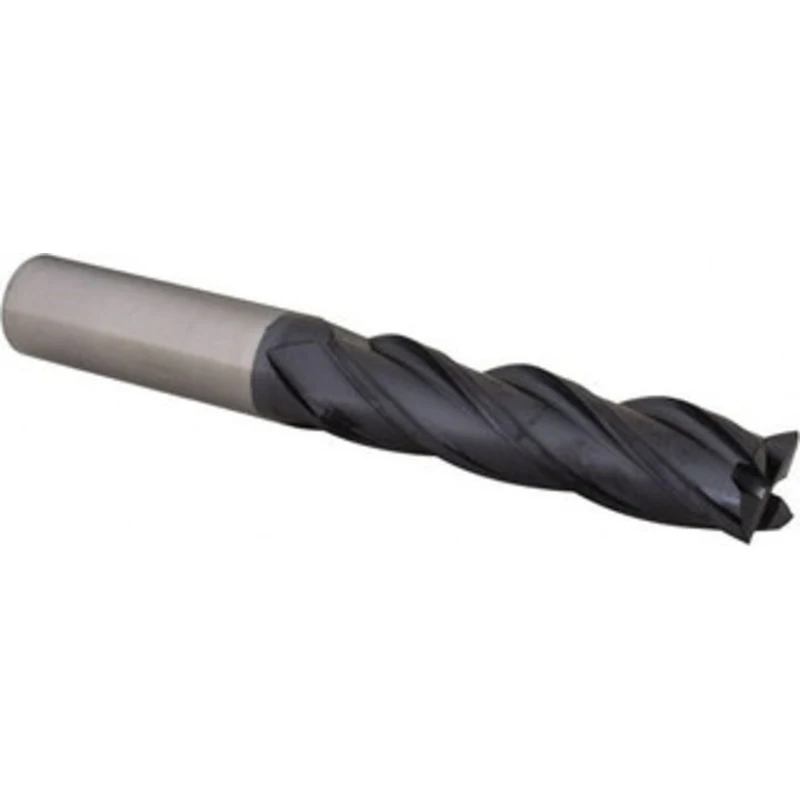

YG-1 1/2 Diam, 2 Length of Cut, 1/2 Shank Diam, 4 OAL, 4 Flute Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix Angle, Long Length GM207032 – 45405586

YG-1 1/2″ Diam, 2″ Length of Cut, 1/2″ Shank Diam, 4″ OAL, 4 Flute Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix Angle, Long Length

Manufacturer Part #: GM207032

S/N: 45405586

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2in
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
2
Length of Cut (Inch)
2in
Shank Diameter (Inch)
1/2in
Shank Diameter (Decimal Inch)
0.5
Overall Length (Decimal Inch)
4
Overall Length (Inch)
4in
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Long
Length Of Cut Range (Decimal Inch)
2.0000+
Mill Diameter Tolerance
0.0000 to -0.0012 in
Shank Diameter Tolerance
+0.0000 to -0.0003 in
UNSPSC Code
27112803
