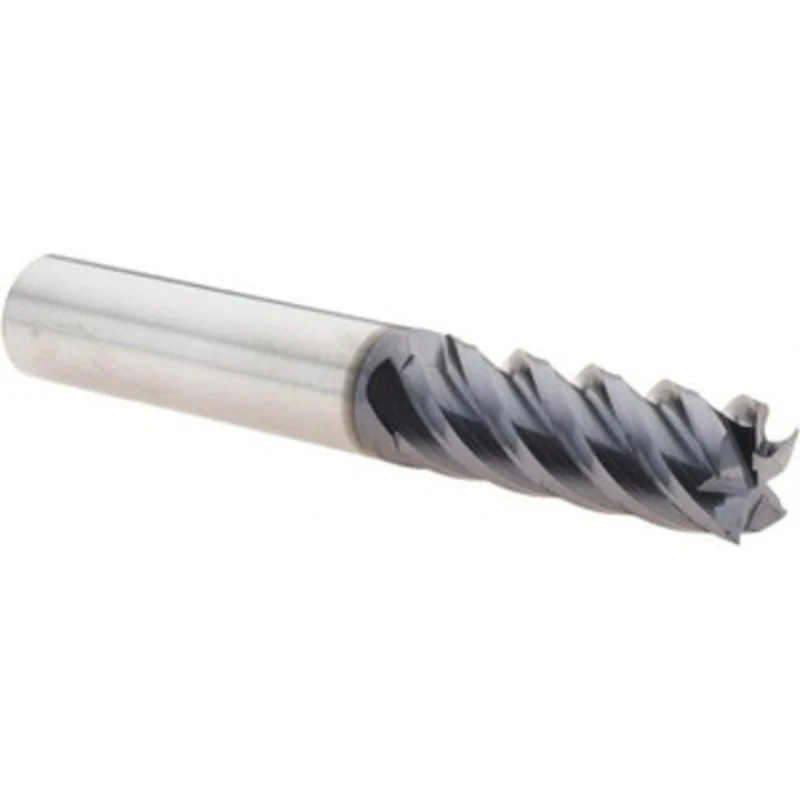

YG-1 3/8, 1 LOC, 3/8 Shank Diam, 2-1/2 OAL, 5 Flute, Solid Carbide Square End Mill Single End, TiAlN Finish, Spiral Flute, 45 Helix, Right Hand Cut, Right Hand Flute 86584TF – 02723203

YG-1 3/8″, 1″ LOC, 3/8″ Shank Diam, 2-1/2″ OAL, 5 Flute, Solid Carbide Square End Mill Single End, TiAlN Finish, Spiral Flute, 45 Helix, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 86584TF

S/N: 02723203

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3750
Mill Diameter (Inch)
3/8in
Number Of Flutes
5
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1
Length of Cut (Inch)
1in
Shank Diameter (Inch)
3/8in
Shank Diameter (Decimal Inch)
0.375
Overall Length (Decimal Inch)
2.5
Overall Length (Inch)
2-1/2in
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
45
Primary Workpiece Material
Steel, Stainless Steel
Primary Workpiece Material Code
P, M
Secondary Workpiece Material
Cast Iron, Non-Ferrous Metal, Super Alloys & Titanium
Secondary Workpiece Material Code
K, N, S
Coating/Finish
TiAlN
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Regular
Mill Diameter Tolerance
0.0000 to -0.0012 in
Shank Diameter Tolerance
+0.0000 to -0.0003 in
Series
E5067
UNSPSC Code
27112803
