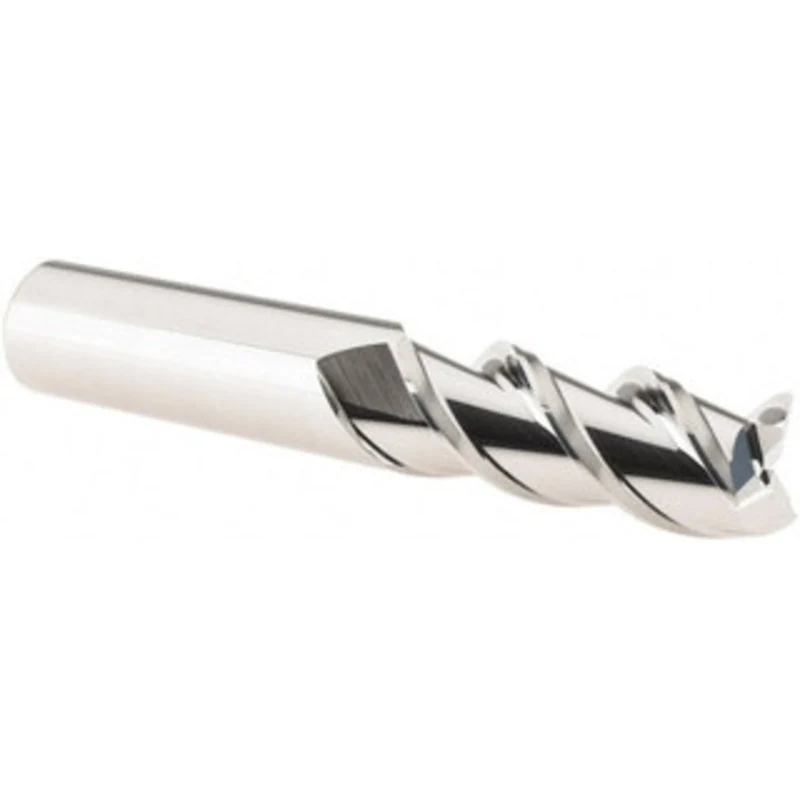

YG-1 Square End Mill 28593 – 71975130

YG-1 Square End Mill

Manufacturer Part #: 28593

S/N: 71975130

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Inch)
1/2
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Inch)
1-1/4
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5
Overall Length (Inch)
3
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
45
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Coating/Finish
Bright/Uncoated
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Mill Diameter Tolerance
0.0000 to -0.0005 in
Shank Diameter Tolerance
+0.0000 to -0.0003 in
Series
E5981
UNSPSC Code
27112803
