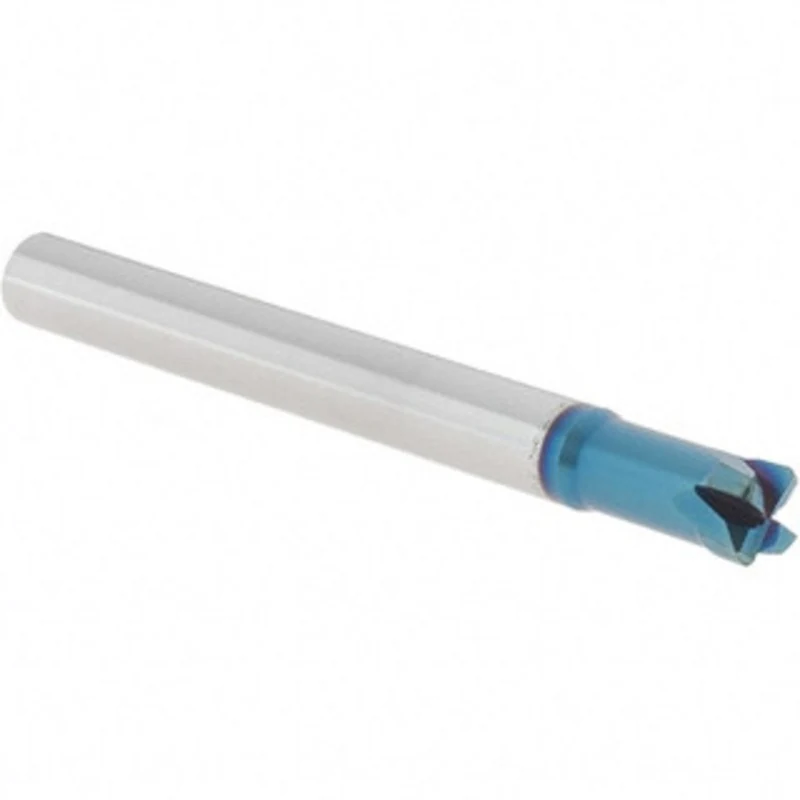

YG-1 Square End Mill G859060 – 66614363

YG-1 Square End Mill

Manufacturer Part #: G859060

S/N: 66614363

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (mm)
6.00
Number Of Flutes
4
Length of Cut (mm)
2.50
End Mill Material
Solid Carbide
Centercutting
No
Flute Direction
Right Hand
Variable Index
No
Variable Helix
No
Cutting Direction
Right Hand
Chipbreaker
No
End Type
Single
Length Type
Stub
Extended Reach
Yes
Shank Type
Straight-Cylindrical
Shank Diameter (Decimal Inch)
0.2362
Shank Diameter (mm)
6.00
Neck Diameter (mm)
5.40
Reach Length (mm)
12.00
Mill Diameter Tolerance
0.0000 to -0.0008 in
Shank Diameter Tolerance
h6
Primary Workpiece Material
Steel, Hard Material
Primary Workpiece Material Code
P, H
UNSPSC Code
27112803
Material Grade
Micrograin
Series
G859
