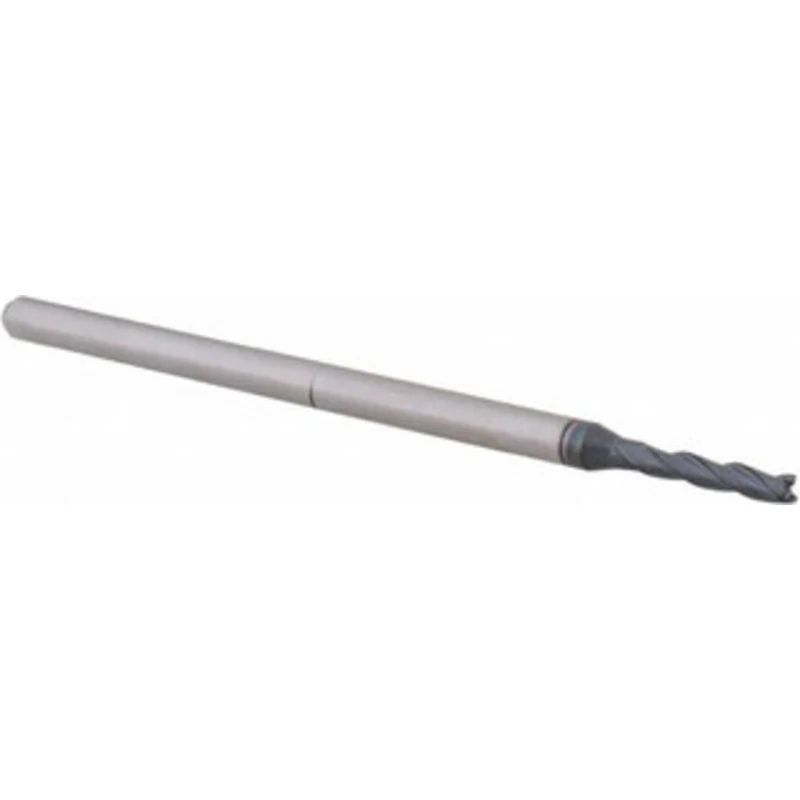

Accupro 0.08, 0.406 LOC, 1/8 Shank Diam, 2-1/2 OAL, 3 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series Miniature AP62775069 – 62775069

Accupro 0.08″, 0.406″ LOC, 1/8″ Shank Diam, 2-1/2″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series Miniature

Manufacturer Part #: AP62775069

S/N: 62775069

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.0800
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.4060
Length of Cut (Inch)
13/32
Shank Diameter (Inch)
1/8
Shank Diameter (Decimal Inch)
0.1250
Overall Length (Decimal Inch)
2.5000
Overall Length (Inch)
2-1/2
Single Or Double End
Single
Coating/Finish Family
AlTiN
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Coolant Through
No
Helix Angle
30
Coating/Finish
AlTiN
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Of Cut Range (Decimal Inch)
0.3000 – 0.5000
Mill Diameter Tolerance
+0.0000/-0.0010 in
Shank Diameter Tolerance
-0.0001/-0.0003 in
Series
ASQSC3-AT-CC-30H
System Of Measurement
Decimal Inch
UNSPSC Code
27112803
