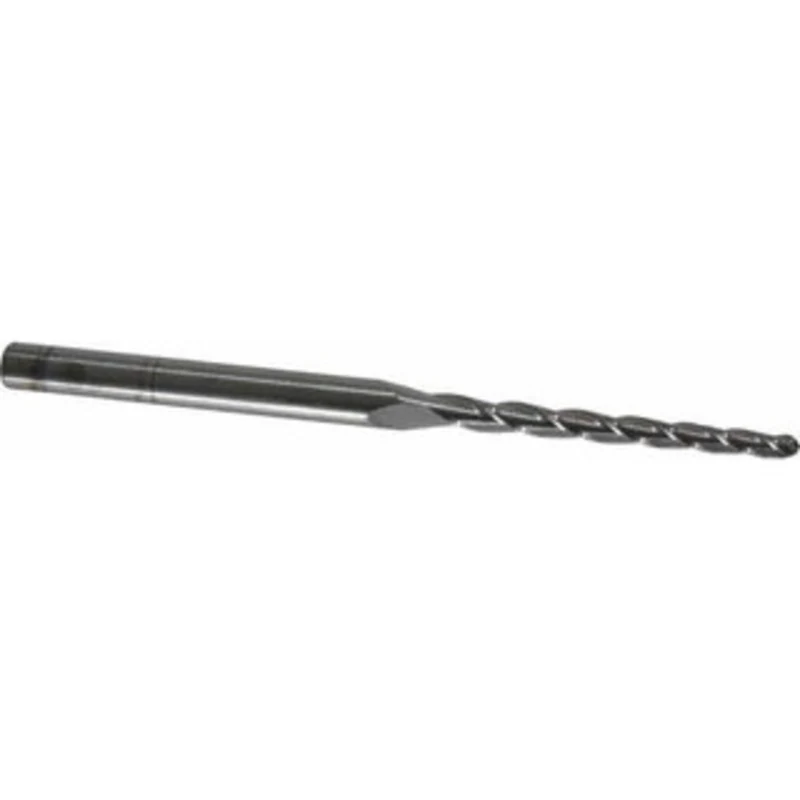

Accupro 1 per Side 3/32 Small End Diam 1-1/4 LOC 3-Flute Solid Carbide Tapered Ball End Mill Uncoated, 3/16 Shank Diam, 3 OAL, 3/64 Nose Radius, 30 Helix, Spiral Flute, Centercutting 12177571 – 01734185

Accupro 1 per Side 3/32″ Small End Diam 1-1/4″ LOC 3-Flute Solid Carbide Tapered Ball End Mill Uncoated, 3/16″ Shank Diam, 3″ OAL, 3/64″ Nose Radius, 30 Helix, Spiral Flute, Centercutting

Manufacturer Part #: 12177571

S/N: 01734185

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Length of Cut (Inch)
1-1/4
Taper Angle Per Side
1.00
End Mill Material
Solid Carbide
End Shape
Ball
Flute Type
Spiral
Overall Length (Decimal Inch)
3.0000
Overall Length (Inch)
3
Centercutting
Yes
Shank Diameter (Inch)
3/16
Nose Radius (Inch)
3/64
Small End Diameter (Inch)
3/32
Helix Angle
30
Material Grade
Micrograin
Flute Direction
Right Hand
Length Of Cut (Decimal Inch – 4 Decimals)
1.2500
Coating/Finish
Uncoated
Number Of Flutes
3
