Accupro 3/64, 0.07 LOC, 1/8 Shank Diam, 2-1/2 OAL, 3 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series Miniature 6501257 – 62785480

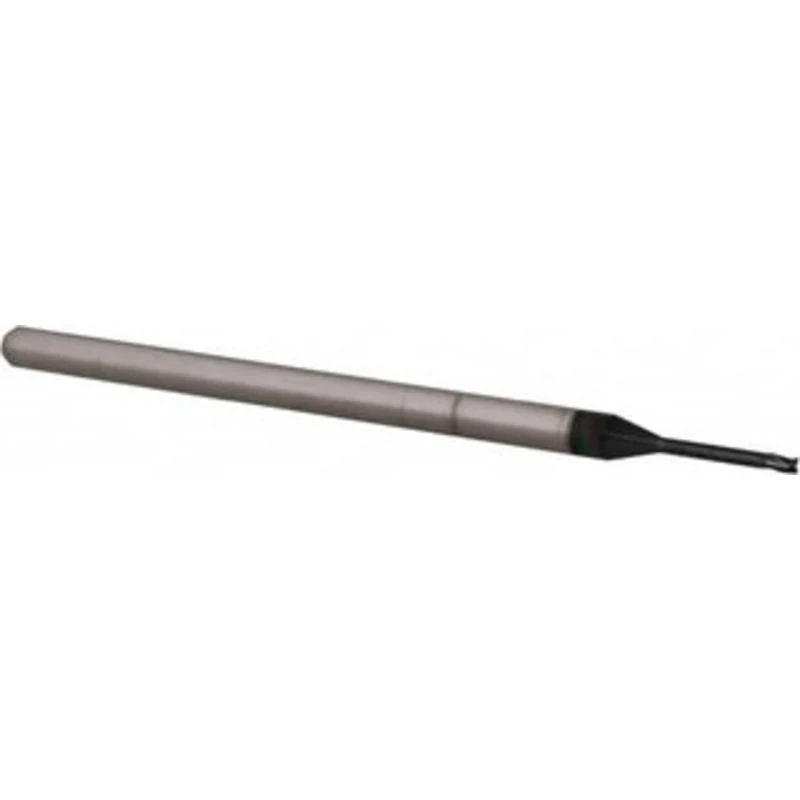

Accupro 3/64″, 0.07″ LOC, 1/8″ Shank Diam, 2-1/2″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series Miniature

Manufacturer Part #: 6501257

S/N: 62785480

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.0469
Mill Diameter (Inch)
3/64
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.0700
Shank Diameter (Inch)
1/8
Shank Diameter (Decimal Inch)
0.1250
Overall Length (Decimal Inch)
2.5000
Overall Length (Inch)
2-1/2
Single Or Double End
Single
Coating/Finish Family
AlTiN
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
Yes
Coolant Through
No
Helix Angle
30
Coating/Finish
AlTiN
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Neck Length (Decimal Inch)
0.4800
Reach Length (Decimal Inch)
0.3750
Length Of Cut Range (Decimal Inch)
0.0000 – 0.1000
Mill Diameter Tolerance
+0.0000/-0.0010 in
Shank Diameter Tolerance
-0.0001/-0.0003 in
Series
ASQSC3-AT-CCER
System Of Measurement
Fractional Inch
UNSPSC Code
27112803
