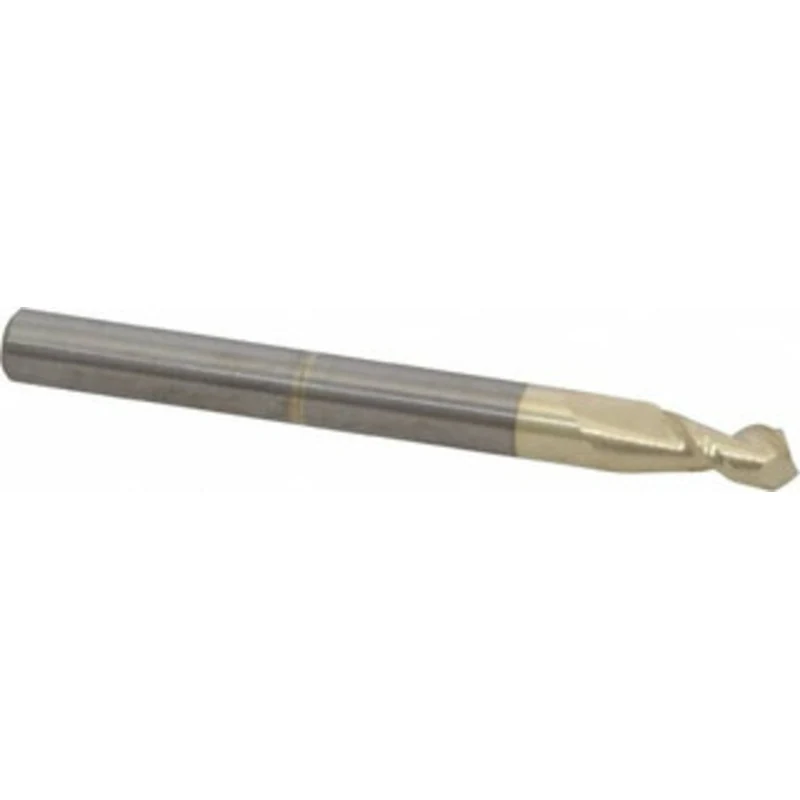

Accupro 5/32, 5/16 LOC, 3/16 Shank Diam, 2 OAL, 2 Flute, Solid Carbide Square End Mill Single End, ZrN Finish, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute 25015605C5 – 01150358

Accupro 5/32″, 5/16″ LOC, 3/16″ Shank Diam, 2″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, ZrN Finish, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 25015605C5

S/N: 01150358

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1563
Mill Diameter (Inch)
5/32
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.3125
Length of Cut (Inch)
5/16
Shank Diameter (Inch)
3/16
Shank Diameter (Decimal Inch)
0.1875
Overall Length (Decimal Inch)
2
Overall Length (Inch)
2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
45
Coating/Finish
ZrN
Variable Helix
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
Micrograin
Length Type
Stub
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
+0.0001/-0.0004 in
UNSPSC Code
27112803
