Mfr No
78.112377
Contact Points
2 Contact Points at 180
Range
0.332 – 0.402″
Graduation
0.0001″
Meas Depth
2.00″

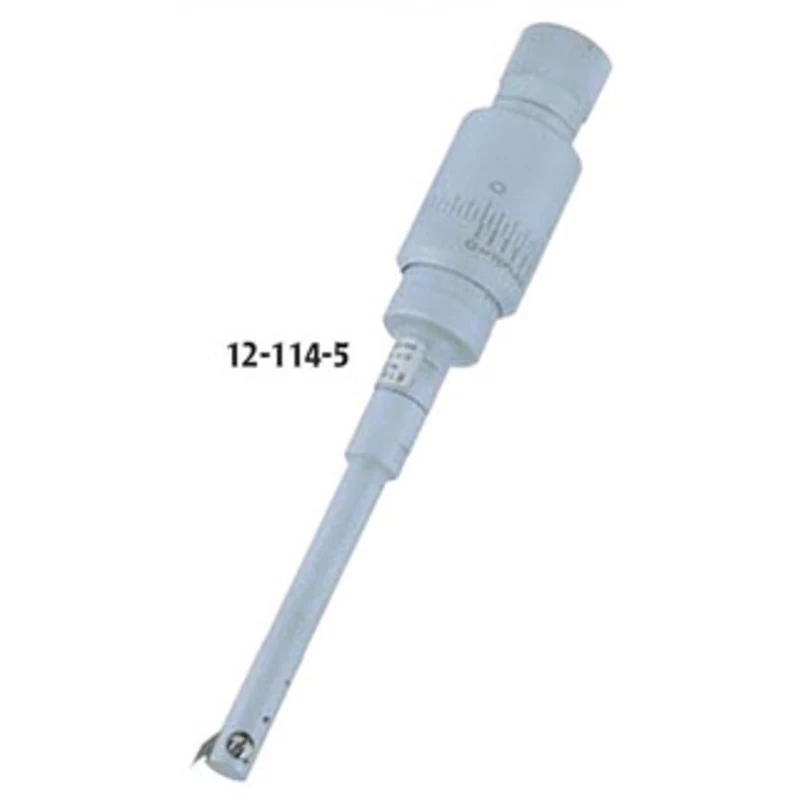

Etalon Ingage Internal Bore Micrometer #78.112377
Range: 0.332 – 0.402″
- Direct reading reduces the possibility of parallax error
- Accurate measurement of diameter at the bottom of blind holes. The anvils extend beyond the measuring head.
- Quick and clear determination of bore dimension
- Hardened and stabilized steel anvils
- Dull chrome finish
- Direct measurement
- Easy and immediate alignment of the instrument because of its low weight and long anvil guides
- The irregular location of anvils 135-135-90 degrees (above 0.800″) permits checking of possible ovalness of bores
- Up to five extensions can be used
- Graduations: 0.0001″
