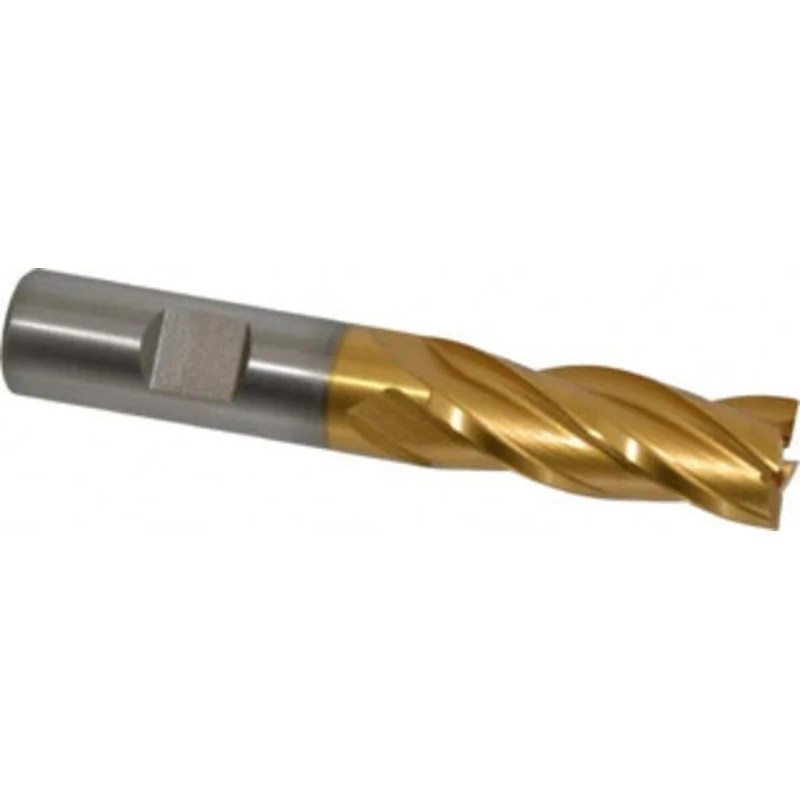

Hertel 5/8, 1-5/8 LOC, 5/8 Shank Diam, 3-3/4 OAL, 4 Flute, High Speed Steel Square End Mill Single End, TiN Finish, Spiral Flute, 30 Helix, Right Hand Cut, Right Hand Flute E8031040 – 41120072

Hertel 5/8″, 1-5/8″ LOC, 5/8″ Shank Diam, 3-3/4″ OAL, 4 Flute, High Speed Steel Square End Mill Single End, TiN Finish, Spiral Flute, 30 Helix, Right Hand Cut, Right Hand Flute

Manufacturer Part #: E8031040

S/N: 41120072

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.6250
Mill Diameter (Inch)
5/8
Number Of Flutes
4
End Mill Material
High Speed Steel
Length of Cut (Decimal Inch)
1.6250
Length of Cut (Inch)
1-5/8
Shank Diameter (Inch)
5/8
Shank Diameter (Decimal Inch)
0.6250
Overall Length (Inch)
3-3/4
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
M7
Length Type
Regular
Length Of Cut Range (Decimal Inch)
1.5000 – 2.0000
