Clamp diameter
2″
length form clamp bracket to indicator
4-1/2″

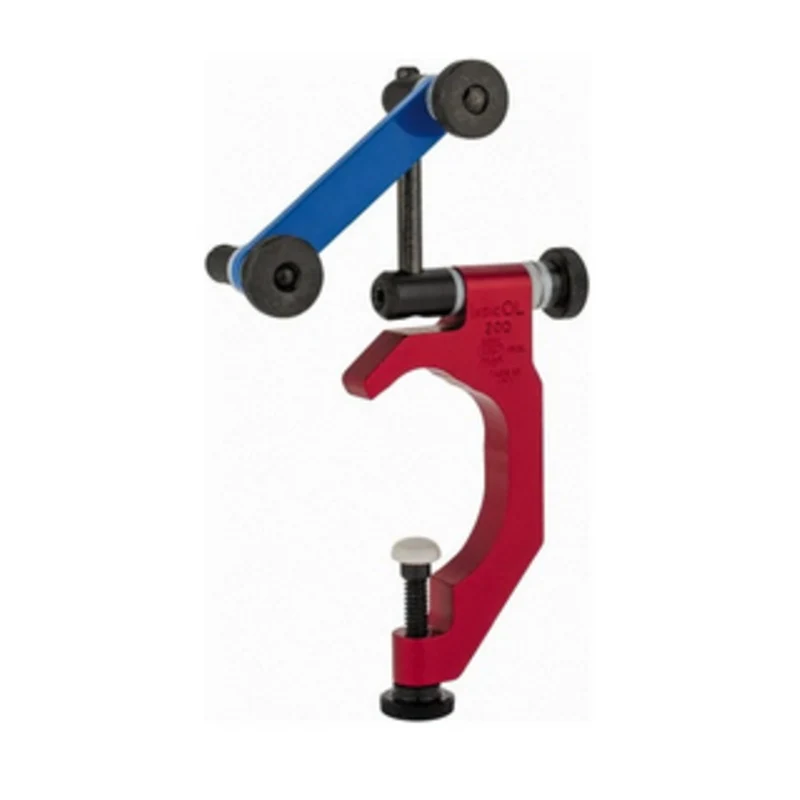

Indicol 2″ Diameter “C” Frame
Suitable for all popular indicators with 5/32″ shank or dovetail
200
- Universal indicator holder for Milling Machines and Jigborers.
- Ideal for Bridgeports!
- Suitable for all popular indicators with 5/32″ shank or dovetail. Extra Grip for holding 3/16″ to 1/4″ dia. shank optional.
- Does not disturb the working tool.
- Adapts immediately for fast and positive indicating.
- Mounts with single pressure screw directly on machine quill, bypassing the working tool.
- Frame features 3-point fixation with opposed pressure screw for rigid mounting.
- The desired stiffness is adjustable and is not altered by the pivoting of the joints.
- Reach from 0 – 12″ dia. Larger reach is possible by replacing and using a longer rod.
- Guaranteed accurate readings.
- Versatility in applications include: Alignment of work, Spindle perpendicularity checking, Concentricity reading.
- Indicator is not included in prices.
- Made in USA
