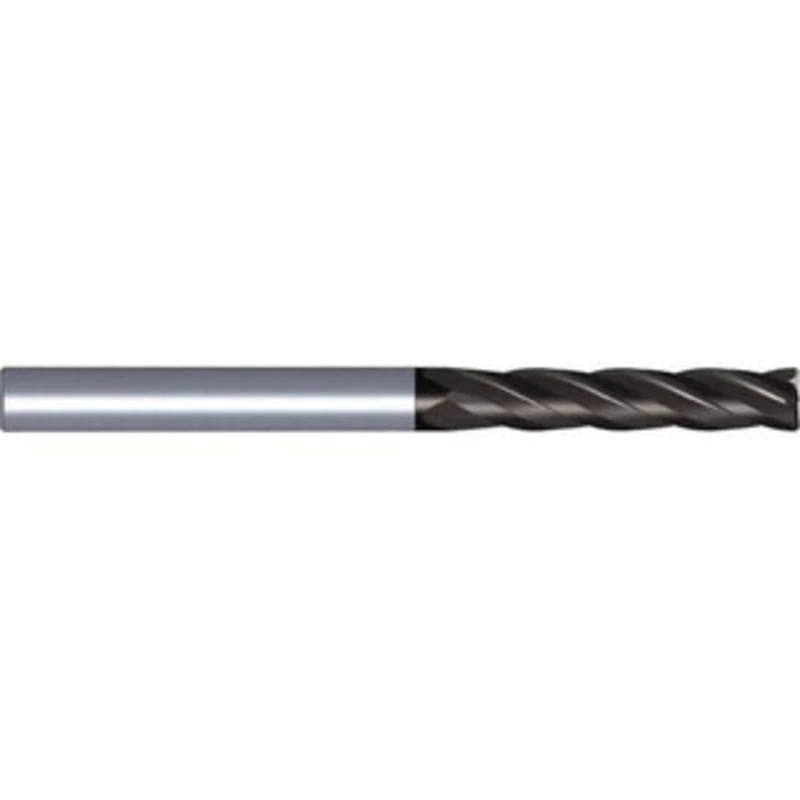

Kennametal 5/16, 1/2 LOC, 5/16 Shank Diam, 2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiAlN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute 6086583 – 35926047

Kennametal 5/16″, 1/2″ LOC, 5/16″ Shank Diam, 2″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiAlN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute

Manufacturer Part #: 6086583

S/N: 35926047

UNSPSC: 27112803

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3125
Mill Diameter (Inch)
5/16
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.5000
Length of Cut (Inch)
1/2
Shank Diameter (Inch)
5/16
Shank Diameter (Decimal Inch)
0.3125
Overall Length (Decimal Inch)
2.0000
Overall Length (Inch)
2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Material Grade
KC633M
Length Of Cut Range (Decimal Inch)
0.5000 – 0.6000
