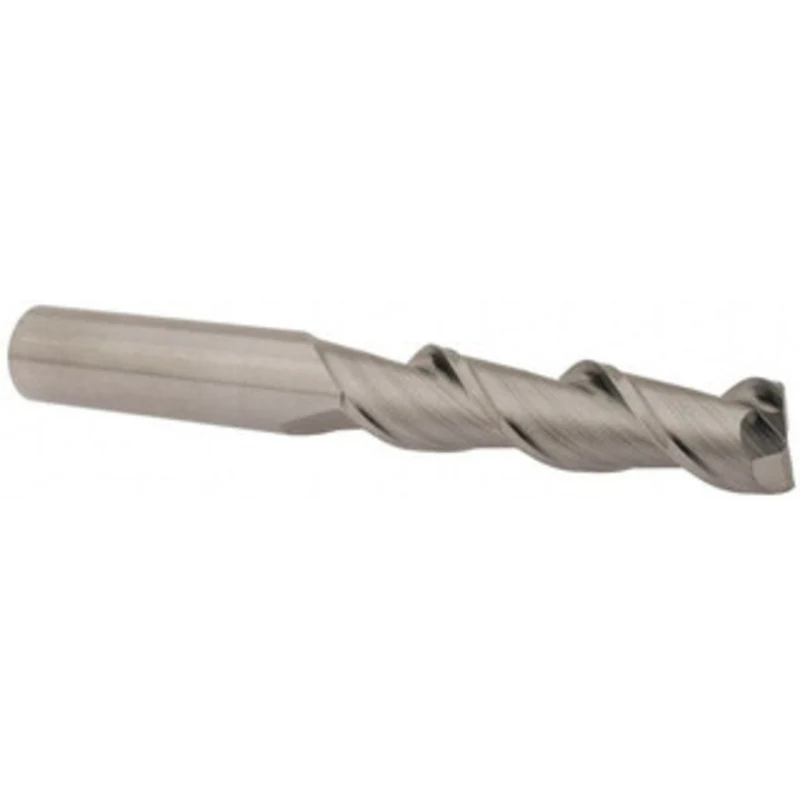

KYOCERA SGS 1/2, 2 LOC, 1/2 Shank Diam, 4 OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 44 32041 – 00074948

KYOCERA SGS 1/2″, 2″ LOC, 1/2″ Shank Diam, 4″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 44

Manufacturer Part #: 32041

S/N: 00074948

UNSPSC: 27112803

UPC: 691781320410

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.5000
Mill Diameter (Inch)
1/2
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
2.0000
Length of Cut (Inch)
2
Shank Diameter (Inch)
1/2
Shank Diameter (Decimal Inch)
0.5000
Overall Length (Decimal Inch)
4.0000
Overall Length (Inch)
4
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
45
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Length Type
Regular
Mill Diameter Tolerance
+0.00000/-0.00043 in
Shank Diameter Tolerance
+0.00000/-0.00043 in
Series
44
