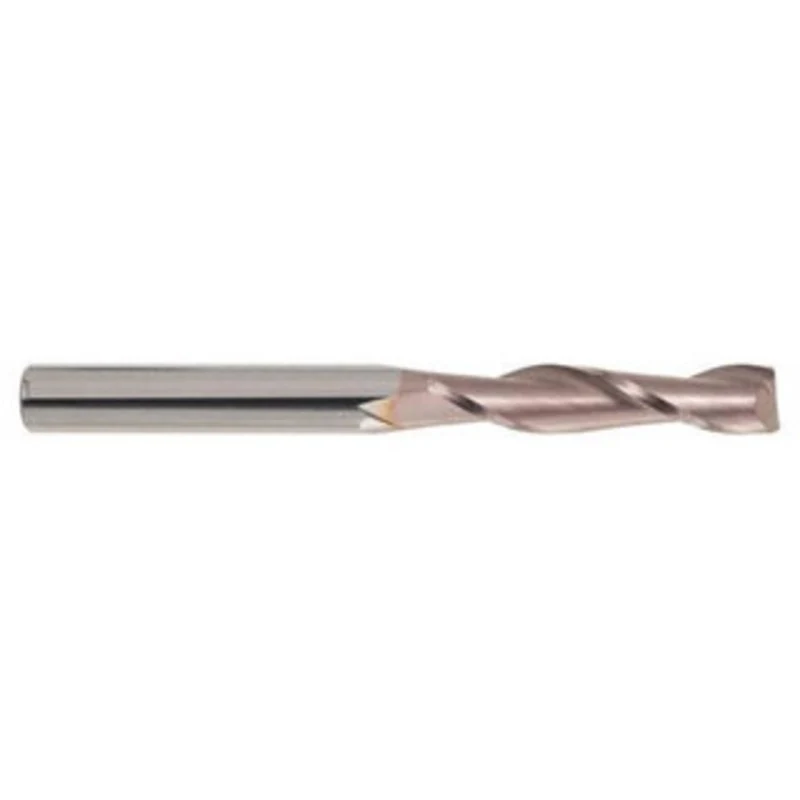

KYOCERA SGS 5/16, 1-5/8 LOC, 5/16 Shank Diam, 4 OAL, 2 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3EL 31951 – 67937615

KYOCERA SGS 5/16″, 1-5/8″ LOC, 5/16″ Shank Diam, 4″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3EL

Manufacturer Part #: 31951

S/N: 67937615

UNSPSC: 27112803

UPC: 691781319513

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3125
Mill Diameter (Inch)
5/16
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.6250
Length of Cut (Inch)
1-5/8
Shank Diameter (Inch)
5/16
Shank Diameter (Decimal Inch)
0.3125
Overall Length (Decimal Inch)
4.0000
Overall Length (Inch)
4
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material Code
H, K, M, N, P, S
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Extra Long
Length Of Cut Range (Decimal Inch)
1.5000 – 2.0000
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
+0.00000/-0.00035 in
Series
3EL
