Home › Cutting Tools & Abrasives › End Mills › KYOCERA SGS 5/32, 5/16 LOC, 3/16 Shank Diam, 2 OAL, 2 Flute, Solid Carbide Square End Mill Double End, TiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 15 31557 – 32162109
KYOCERA SGS 5/32, 5/16 LOC, 3/16 Shank Diam, 2 OAL, 2 Flute, Solid Carbide Square End Mill Double End, TiN Finish, Sp...
End Mills

KYOCERA SGS 5/32, 5/16 LOC, 3/16 Shank Diam, 2 OAL, 2 Flute, Solid Carbide Square End Mill Double End, TiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 15 31557 – 32162109

Original price was: $42.60.Current price is: $12.78.

Availability: 10 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 32162109
CATEGORY: End Mills
Description

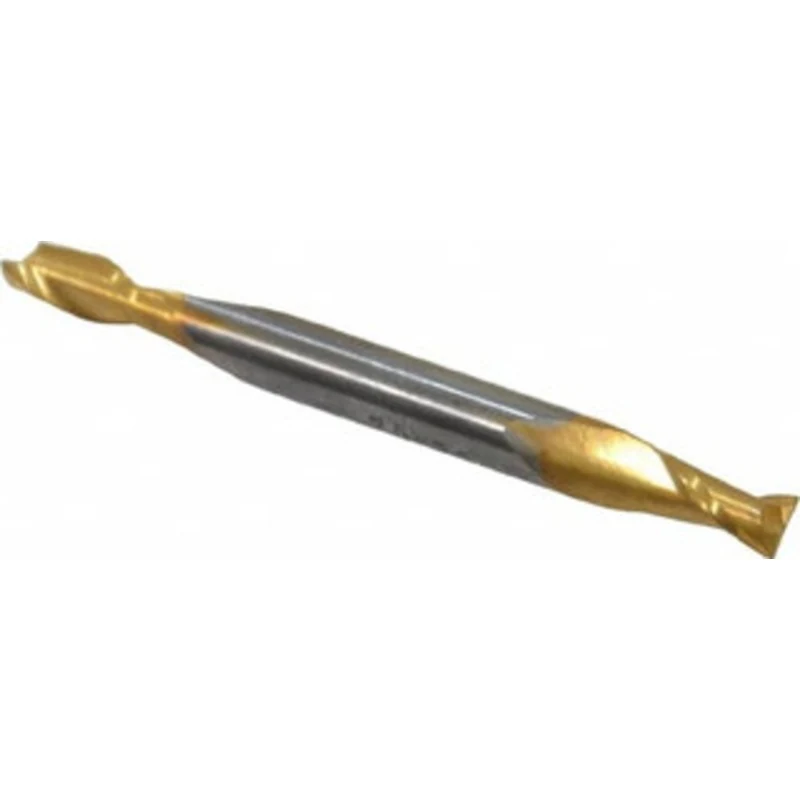

KYOCERA SGS 5/32″, 5/16″ LOC, 3/16″ Shank Diam, 2″ OAL, 2 Flute, Solid Carbide Square End Mill Double End, TiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 15

Manufacturer Part #: 31557

S/N: 32162109

UNSPSC: 27112803

UPC: 691781315577

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1563
Mill Diameter (Inch)
5/32
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.3125
Length of Cut (Inch)
5/16
Shank Diameter (Inch)
3/16
Shank Diameter (Decimal Inch)
0.1875
Overall Length (Decimal Inch)
2.0000
Overall Length (Inch)
2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material Code
H, K, M, N, P, S
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Stub
Length Of Cut Range (Decimal Inch)
0.3000 – 0.5000
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
-0.0001/-0.0004 in
Series
15
