KYOCERA SGS 5 per Side 1/4 Small End Diam 1-1/4 LOC 3-Flute Solid Carbide Tapered Ball End Mill Uncoated, 1/2 Shank D...
End Mills

KYOCERA SGS 5 per Side 1/4 Small End Diam 1-1/4 LOC 3-Flute Solid Carbide Tapered Ball End Mill Uncoated, 1/2 Shank Diam, 4 OAL, 1/8 Nose Radius, 28 Helix, Spiral Flute, Centercutting, Series 24B 32438 – 03281375

Original price was: $174.78.Current price is: $52.43.

Availability: 7 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 3281375
CATEGORY: End Mills
Description

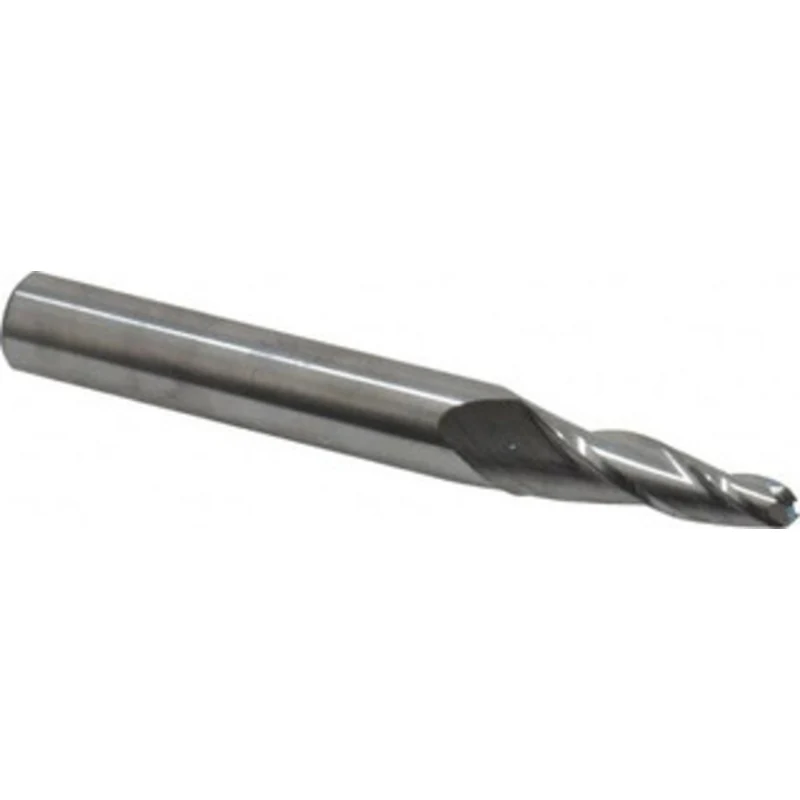

KYOCERA SGS 5 per Side 1/4″ Small End Diam 1-1/4″ LOC 3-Flute Solid Carbide Tapered Ball End Mill Uncoated, 1/2″ Shank Diam, 4″ OAL, 1/8″ Nose Radius, 28 Helix, Spiral Flute, Centercutting, Series 24B

Manufacturer Part #: 32438

S/N: 03281375

UNSPSC: 27112803

UPC: 691781324388

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.2500
Length of Cut (Inch)
1-1/4
Taper Angle Per Side
5.00
End Mill Material
Solid Carbide
End Shape
Ball
Flute Type
Spiral
Overall Length (Decimal Inch)
4.0000
Overall Length (Inch)
4
Centercutting
Yes
Shank Diameter (Inch)
1/2
Nose Radius (Inch)
1/8
Small End Diameter (Inch)
1/4
Helix Angle
28
Shank Diameter Tolerance
-0.0001/-0.0004 in
Small End Diameter Tolerance
+0.0000/-0.0010 in
Primary Workpiece Material Code
H, K, M, N, P, S
Material Grade
Micrograin
Flute Direction
Right Hand
Series
24B
Length Of Cut (Decimal Inch – 4 Decimals)
1.2500
Coating/Finish
Uncoated
Number Of Flutes
3
